AIR CONDITIONING SYSTEM — Compressor
(c) Remove the stator.

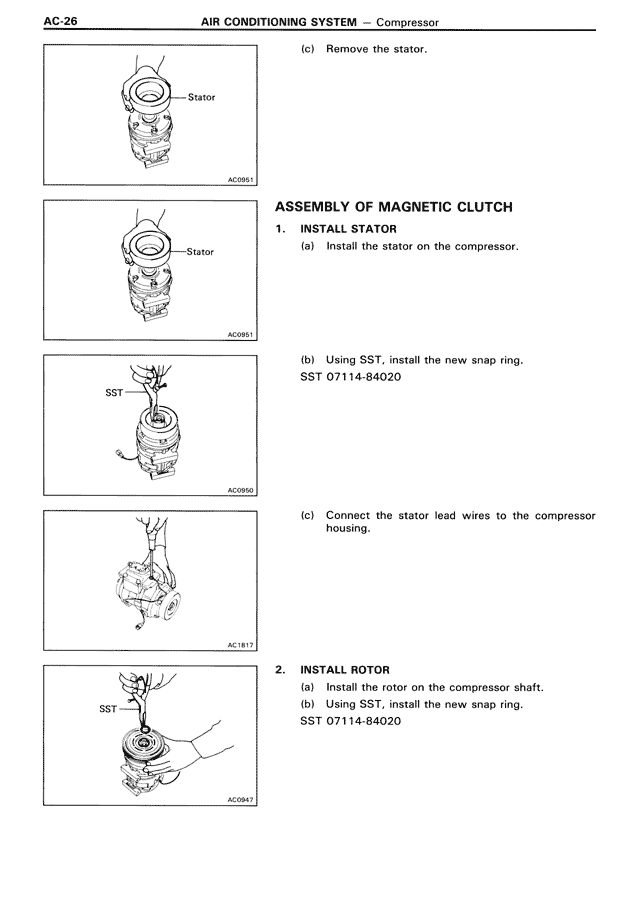

ASSEMBLY OF MAGNETIC CLUTCH
1. INSTALL STATOR
(a) Install the stator on the compressor.
(b) Using SST, install the new snap ring.
SST 07114-84020
(c) Connect the stator lead wires to the compressor housing.
2. INSTALL ROTOR
(a) Install the rotor on the compressor shaft.
(b) Using SST, install the new snap ring.
SST 07114-84020
