Air Conditioning System
/
p.5
← 004
AC · 005
006 →

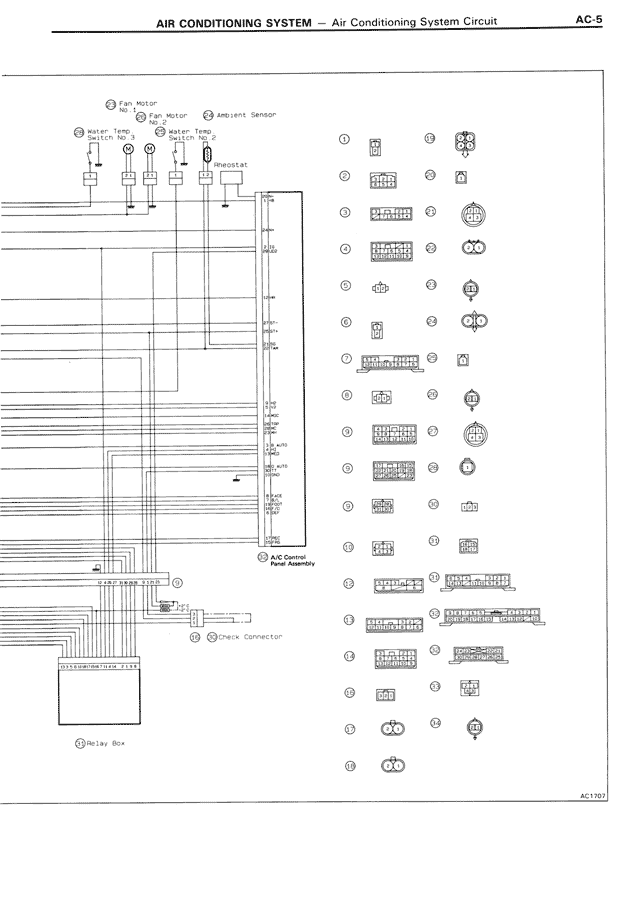

AIR CONDITIONING SYSTEM — Air Conditioning System Circuit AC-5 2 Fan Motor 3 Fan Motor 4 Ambient Sensor 5 Water Temp. Sensor 3 A/C Control Panel Assembly 1 O Check Connector 2 Relay Box AC1002
