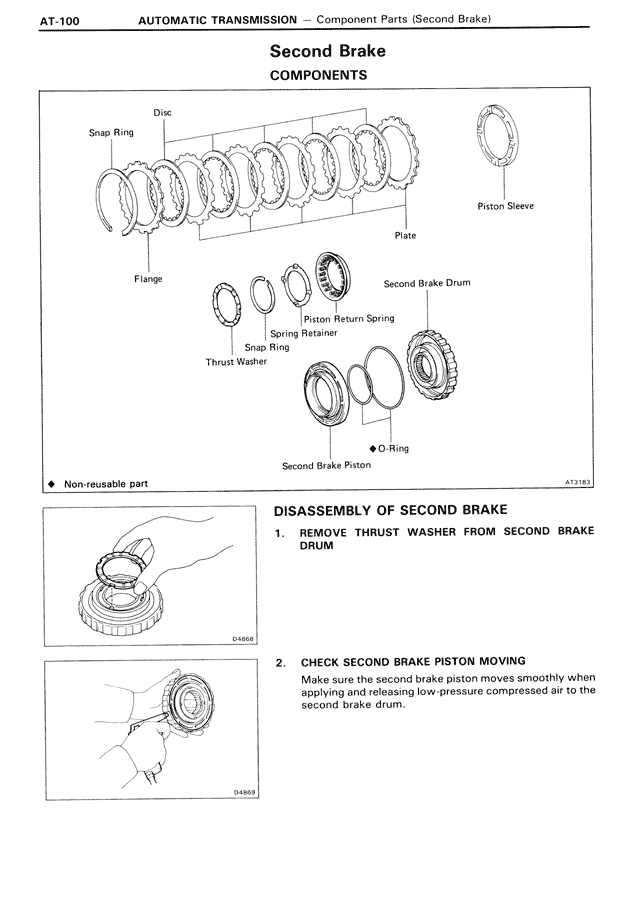

AT-100 AUTOMATIC TRANSMISSION — Component Parts (Second Brake)
Second Brake
COMPONENTS
Snap Ring
Disc
Flange
Plate
Piston Sleeve
Second Brake Drum
Piston Return Spring
Spring Retainer
Snap Ring
Thrust Washer
O-Ring
Second Brake Piston
♦ Non-reusable part
A53383
DISASSEMBLY OF SECOND BRAKE
1. REMOVE THRUST WASHER FROM SECOND BRAKE DRUM
D4868
2. CHECK SECOND BRAKE PISTON MOVING
Make sure the second brake piston moves smoothly when applying and releasing low pressure compressed air to the second brake drum.
D4863
