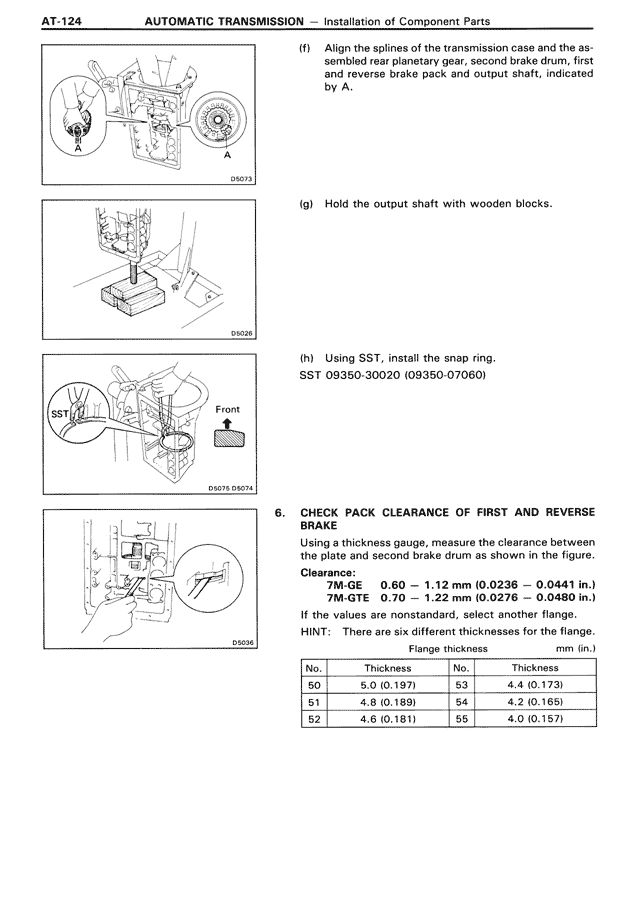

AT-124 AUTOMATIC TRANSMISSION — Installation of Component Parts (f) Align the splines of the transmission case and the assembled rear planetary gear, second brake drum, first and reverse brake pack and output shaft, and connect them by A. D3073 (g) Hold the output shaft with wooden blocks. D3026 (h) Using SST, install the snap ring. SST 09350-30020 (09350-07060) D3075 D3074 6. CHECK PACK CLEARANCE OF FIRST AND REVERSE BRAKE Using a thickness gauge, measure the clearance between the plate and second brake drum as shown in the figure. Clearance: 7M-GE 0.60 — 1.12 mm (0.0236 — 0.0441 in.) 7M-GTE 0.70 — 1.22 mm (0.0276 — 0.0480 in.) If the values are nonstandard, select another flange. HINT: There are six different thicknesses for the flange. Flange thickness mm (in.) No. Thickness No. Thickness 50 5.0 (0.197) 53 4.4 (0.173) 51 4.8 (0.189) 54 4.2 (0.165) 52 4.6 (0.181) 55 4.0 (0.157) D3036
