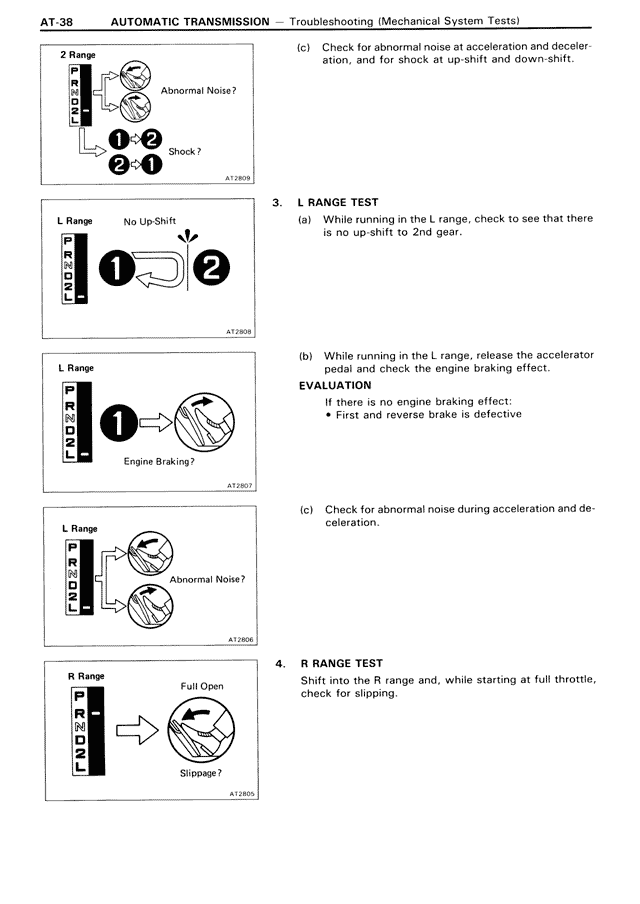

AT-38 AUTOMATIC TRANSMISSION — Troubleshooting (Mechanical System Tests) 2 Range P R N D 2 L 1 ← 2 Abnormal Noise? 2 ← 1 Shock? AT2809 (c) Check for abnormal noise at acceleration and deceleration, and for shock at up-shift and down-shift. 3. L RANGE TEST (a) While running in the L range, check to see that there is no up-shift to 2nd gear. L Range No Up-Shift P R N D 2 L 1 → 2 AT2808 (b) While running in the L range, release the accelerator pedal and check the engine braking effect. EVALUATION If there is no engine braking effect: • First and reverse brake is defective L Range P R N D 2 L 1 → Engine Braking? AT2807 (c) Check for abnormal noise during acceleration and deceleration. L Range P R N D 2 L Abnormal Noise? AT2806 4. R RANGE TEST Shift into the R range and, while starting at full throttle, check for slipping. R Range Full Open P R N D 2 L Slipping? AT2805
