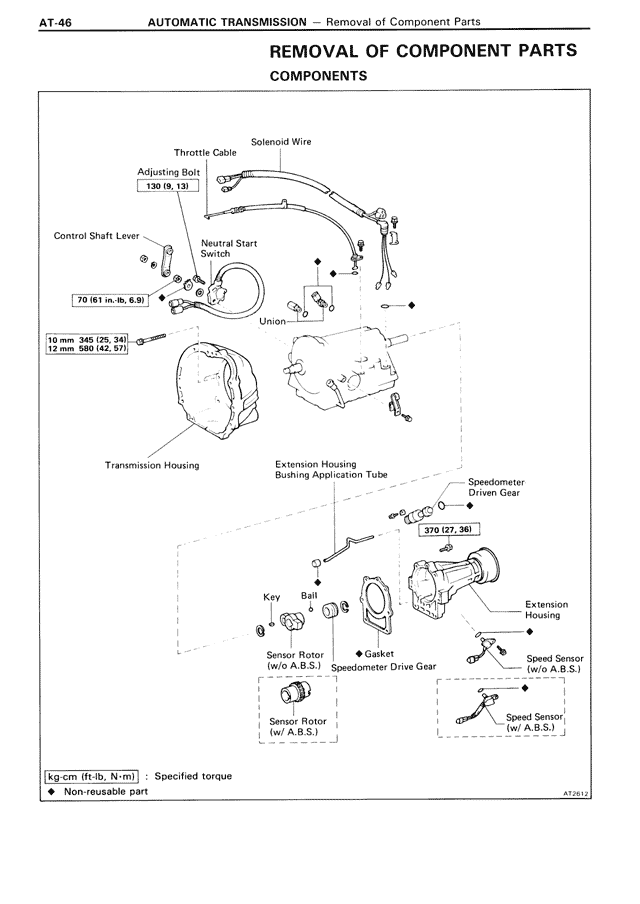

AT-46
AUTOMATIC TRANSMISSION — Removal of Component Parts
REMOVAL OF COMPONENT PARTS
COMPONENTS
Throttle Cable
Solenoid Wire
Adjusting Bolt
120 (9, 13)
Control Shaft Lever
Neutral Start
Switch
70 (61 in.-lb, 6.9)
Union
10 mm 345 (25, 34)
12 mm 580 (42, 57)
Transmission Housing
Extension Housing
Bushing Application Tube
Speedometer
Driven Gear
370 (27, 38)
Key
Ball
Extension
Housing
Sensor Rotor
Gasket
(w/o A.B.S.)
Speedometer Drive Gear
Speed Sensor
(w/o A.B.S.)
Sensor Rotor
(w/ A.B.S.)
Speed Sensor
(w/ A.B.S.)
kg-cm (ft-lb, N-m) : Specified torque
♦ Non-reusable part
AT2617
