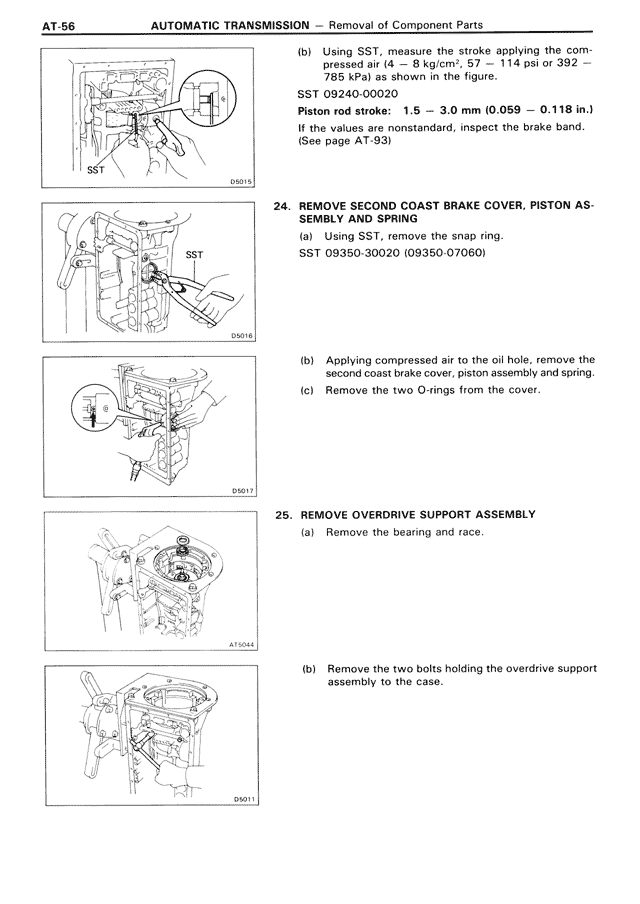

AT-56
AUTOMATIC TRANSMISSION — Removal of Component Parts
(b) Using SST, measure the stroke applying the compressed air (4 — 8 kg/cm², 57 — 114 psi or 392 — 785 kPa) as shown in the figure.
SST 09240-00020
Piston rod stroke: 1.5 — 3.0 mm (0.059 — 0.118 in.)
If the values are nonstandard, inspect the brake band.
(See page AT-93)
24. REMOVE SECOND COAST BRAKE COVER, PISTON AS-SEMBLY AND SPRING
(a) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)
(b) Applying compressed air to the oil hole, remove the second coast brake cover, piston assembly and spring.
(c) Remove the two O-rings from the cover.
25. REMOVE OVERDRIVE SUPPORT ASSEMBLY
(a) Remove the bearing and race.
(b) Remove the two bolts holding the overdrive support assembly to the case.
