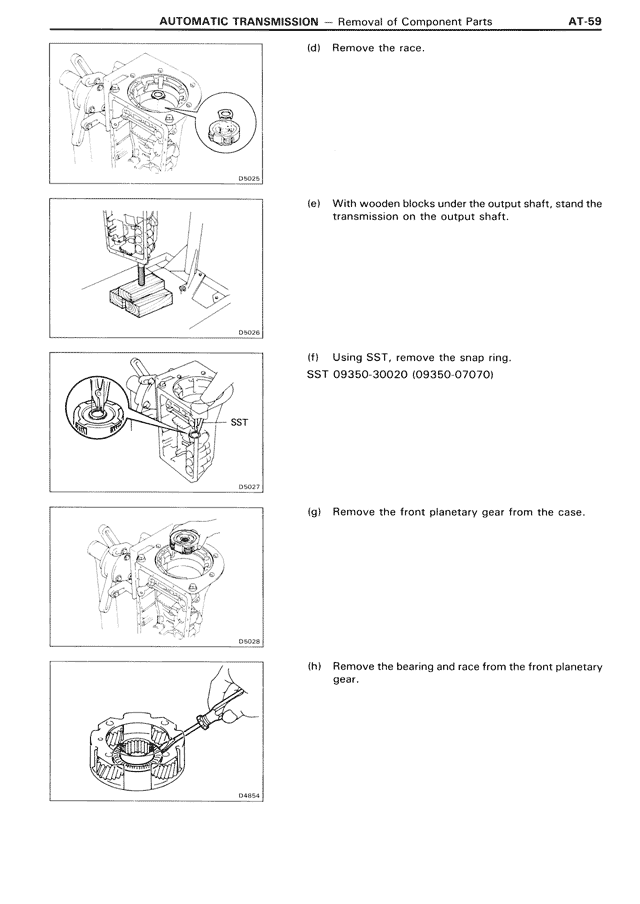

AUTOMATIC TRANSMISSION — Removal of Component Parts
AT-59
(d) Remove the race.
(e) With wooden blocks under the output shaft, stand the transmission on the output shaft.
(f) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
(g) Remove the front planetary gear from the case.
(h) Remove the bearing and race from the front planetary gear.
