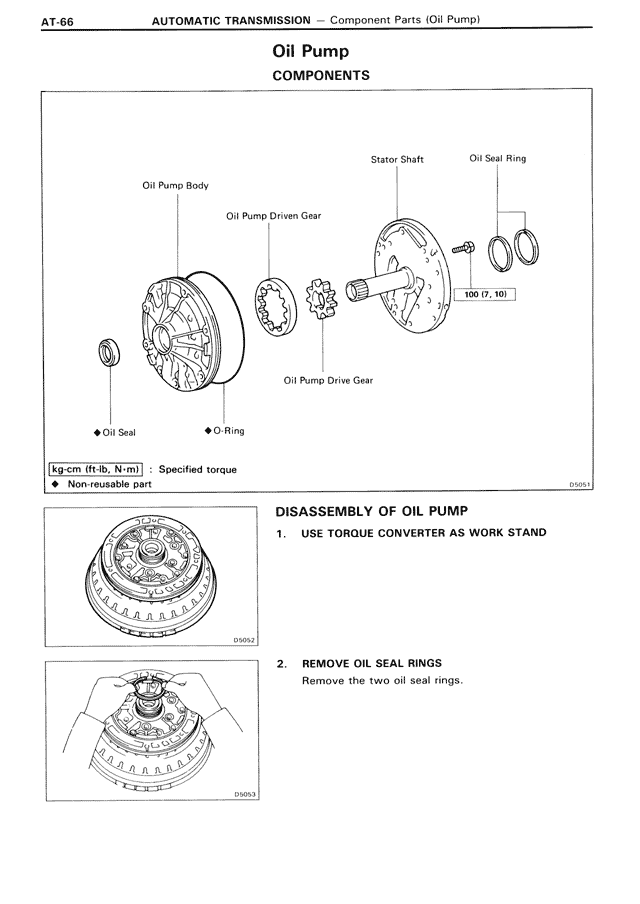

AT-66 AUTOMATIC TRANSMISSION — Component Parts (Oil Pump) Oil Pump COMPONENTS Oil Pump Body Oil Pump Driven Gear Oil Pump Drive Gear Stator Shaft Oil Seal Ring 100 [7, 10] ◆Oil Seal ◆O-Ring kg-cm (ft-lb, N-m) : Specified torque ◆ Non-reusable part D5051 DISASSEMBLY OF OIL PUMP 1. USE TORQUE CONVERTER AS WORK STAND D5052 2. REMOVE OIL SEAL RINGS Remove the two oil seal rings. D5053
