Automatic Transmission
/
p.72
← 071
AT · 072
073 →

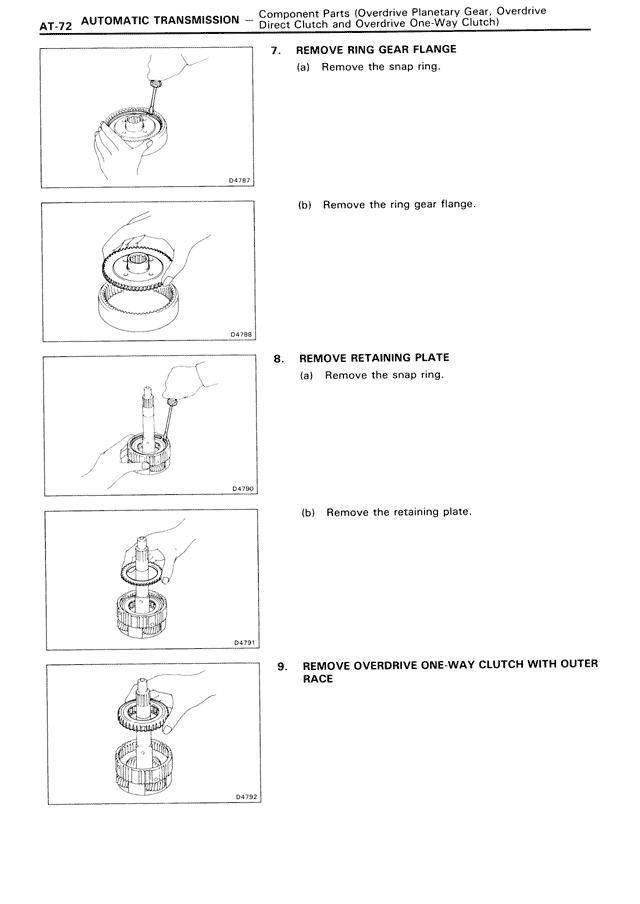

7. REMOVE RING GEAR FLANGE (a) Remove the snap ring. (b) Remove the ring gear flange. 8. REMOVE RETAINING PLATE (a) Remove the snap ring. (b) Remove the retaining plate. 9. REMOVE OVERDRIVE ONE-WAY CLUTCH WITH OUTER RACE
