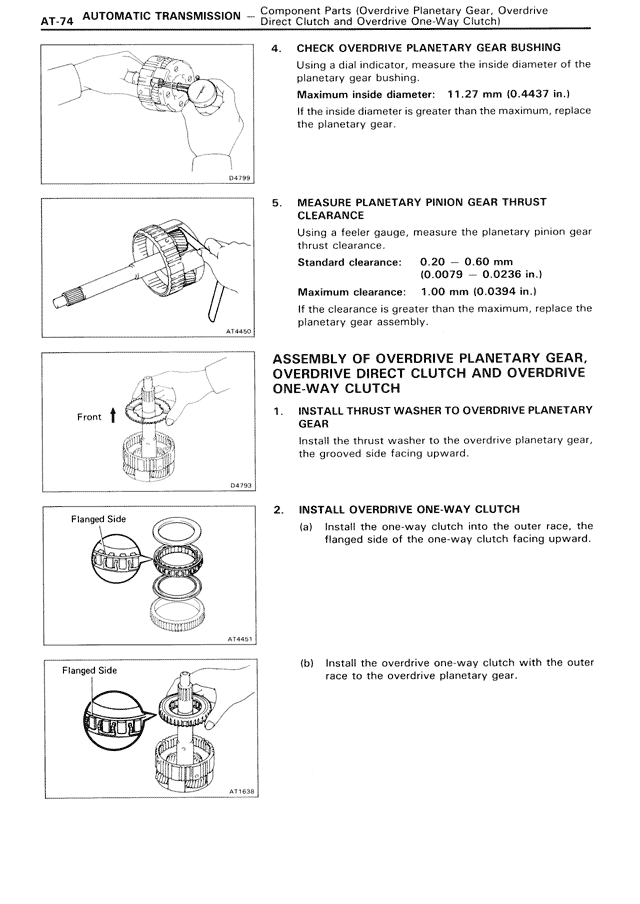

AT-74 AUTOMATIC TRANSMISSION — Component Parts (Overdrive Planetary Gear, Overdrive Direct Clutch and Overdrive One-Way Clutch) 4. CHECK OVERDRIVE PLANETARY GEAR BUSHING Using a dial indicator, measure the inside diameter of the planetary gear bushing. Maximum inside diameter: 11.27 mm (0.4437 in.) If the inside diameter is greater than the maximum, replace the planetary gear. 5. MEASURE PLANETARY PINION GEAR THRUST CLEARANCE Using a feeler gauge, measure the planetary pinion gear thrust clearance. Standard clearance: 0.20 — 0.60 mm (0.0079 — 0.0236 in.) Maximum clearance: 1.00 mm (0.0394 in.) If the clearance is greater than the maximum, replace the planetary gear assembly. ASSEMBLY OF OVERDRIVE PLANETARY GEAR, OVERDRIVE DIRECT CLUTCH AND OVERDRIVE ONE-WAY CLUTCH 1. INSTALL THRUST WASHER TO OVERDRIVE PLANETARY GEAR Install the thrust washer to the overdrive planetary gear, the grooved side facing upward. 2. INSTALL OVERDRIVE ONE-WAY CLUTCH (a) Install the one-way clutch into the outer race, the flanged side of the one-way clutch facing upward. (b) Install the overdrive one-way clutch with the outer race to the overdrive planetary gear.
