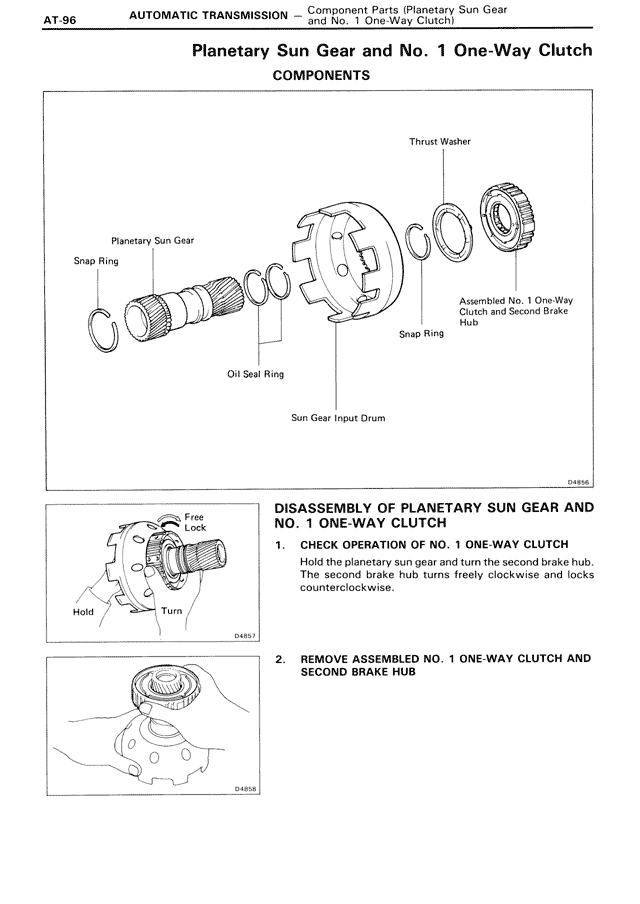

AT-96 AUTOMATIC TRANSMISSION — Component Parts (Planetary Sun Gear and No. 1 One-Way Clutch) Planetary Sun Gear and No. 1 One-Way Clutch COMPONENTS Thrust Washer Planetary Sun Gear Snap Ring Assembled No. 1 One-Way Clutch and Second Brake Hub Snap Ring Oil Seal Ring Sun Gear Input Drum D4856 DISASSEMBLY OF PLANETARY SUN GEAR AND NO. 1 ONE-WAY CLUTCH 1. CHECK OPERATION OF NO. 1 ONE-WAY CLUTCH Hold the planetary sun gear and turn the second brake hub. The second brake hub turns freely clockwise and locks counterclockwise. Free Hold Turn D4857 2. REMOVE ASSEMBLED NO. 1 ONE-WAY CLUTCH AND SECOND BRAKE HUB D4858
