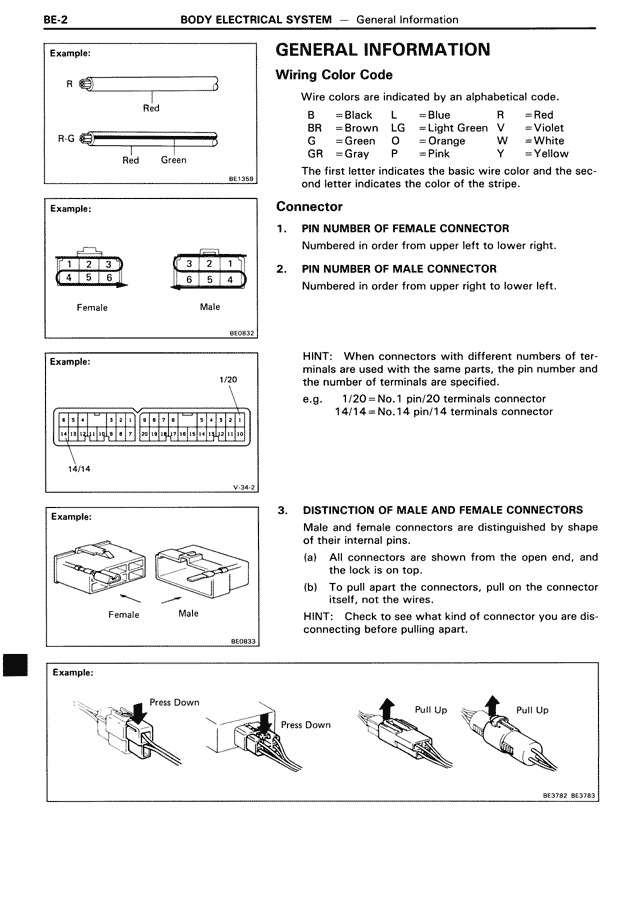

GENERAL INFORMATION Wiring Color Code Wire colors are indicated by an alphabetical code. B = Black L = Blue R = Red BR = Brown LG = Light Green V = Violet G = Green O = Orange W = White GR = Gray P = Pink Y = Yellow The first letter indicates the basic wire color and the second letter indicates the color of the stripe. Connector 1. PIN NUMBER OF FEMALE CONNECTOR Numbered in order from upper left to lower right. 2. PIN NUMBER OF MALE CONNECTOR Numbered in order from upper right to lower left. HINT: When connectors with different numbers of terminals are used with the same parts, the pin number and the number of terminals are specified. e.g. 1/20 = No.1 pin/20 terminals connector 14/14 = No.14 pin/14 terminals connector 3. DISTINCTION OF MALE AND FEMALE CONNECTORS Male and female connectors are distinguished by shape of their internal pins. (a) All connectors are shown from the open end, and the lock is on top. (b) To pull apart the connectors, pull on the connector itself, not the wires. HINT: Check to see what kind of connector you are disconnecting before pulling apart. Example: R [wire diagram] Red R G [wire diagram] Red Green BE1368 Example: [Connector diagrams showing Female and Male connectors with numbered pins] 1 2 3 4 5 6 Female 3 2 1 0 5 4 Male BE0632 Example: 1/20 [Detailed connector diagram showing pin numbering] 14/14 V-342 Example: [Connector physical appearance diagrams] Female Male BE0633 Example: [Connector disconnect/connect diagrams showing] Press Down Press Down Pull Up Pull Up BE3782 BE3793
