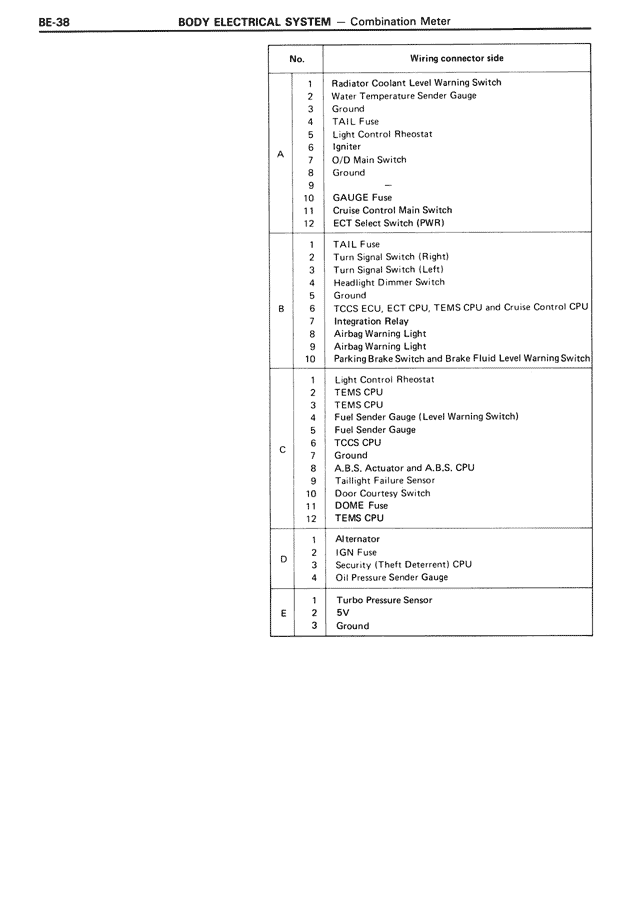

BE-38 BODY ELECTRICAL SYSTEM — Combination Meter No. Wiring connector side A 1 Radiator Coolant Level Warning Switch 2 Water Temperature Sender Gauge 3 Ground 4 TAIL Fuse 5 Light Control Rheostat 6 Igniter 7 O/D Main Switch 8 Ground 9 — 10 GAUGE Fuse 11 Cruise Control Main Switch 12 ECT Select Switch (PWR) B 1 TAIL Fuse 2 Turn Signal Switch (Right) 3 Turn Signal Switch (Left) 4 Headlight Dimmer Switch 5 Ground 6 TCCS ECU, ECT CPU, TEMS CPU and Cruise Control CPU 7 Integration Relay 8 Passenger Seatbelt 9 Airbag Warning Light 10 Parking Brake Switch and Brake Fluid Level Warning Switch C 1 Light Control Rheostat 2 TEMS CPU 3 TEMS CPU 4 Fuel Sender Gauge (Level Warning Switch) 5 Fuel Sender Gauge 6 TCCS CPU 7 Ground 8 A.B.S. Actuator and A.B.S. CPU 9 Taillight Failure Sensor 10 Door Courtesy Switch 11 DOME Fuse 12 TEMS CPU D 1 Alternator 2 IGN Fuse 3 Security (Theft Deterrent) CPU 4 Oil Pressure Sender Gauge E 1 Turbo Pressure Sensor 2 5V+ 3 Ground
