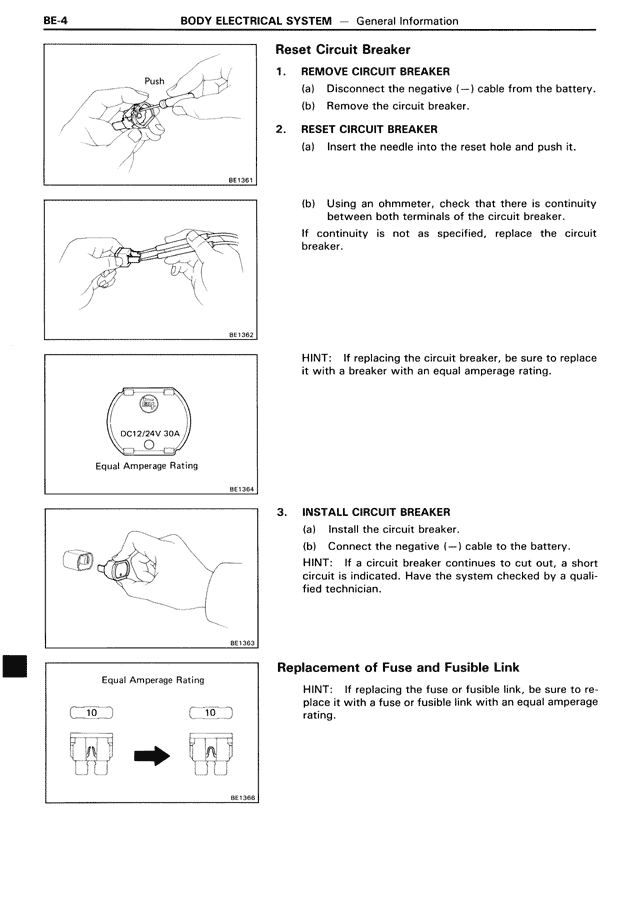

Reset Circuit Breaker
1. REMOVE CIRCUIT BREAKER
(a) Disconnect the negative (—) cable from the battery.
(b) Remove the circuit breaker.
2. RESET CIRCUIT BREAKER
(a) Insert the needle into the reset hole and push it.
(b) Using an ohmmeter, check that there is continuity between both terminals of the circuit breaker.
If continuity is not as specified, replace the circuit breaker.
HINT: If replacing the circuit breaker, be sure to replace it with a breaker with an equal amperage rating.
DC12/24V 30A
Equal Amperage Rating
3. INSTALL CIRCUIT BREAKER
(a) Install the circuit breaker.
(b) Connect the negative (—) cable to the battery.
HINT: If a circuit breaker continues to cut out, a short circuit is indicated. Have the system checked by a qualified technician.
Replacement of Fuse and Fusible Link
HINT: If replacing the fuse or fusible link, be sure to replace it with a fuse or fusible link with an equal amperage rating.
Equal Amperage Rating
10 10
