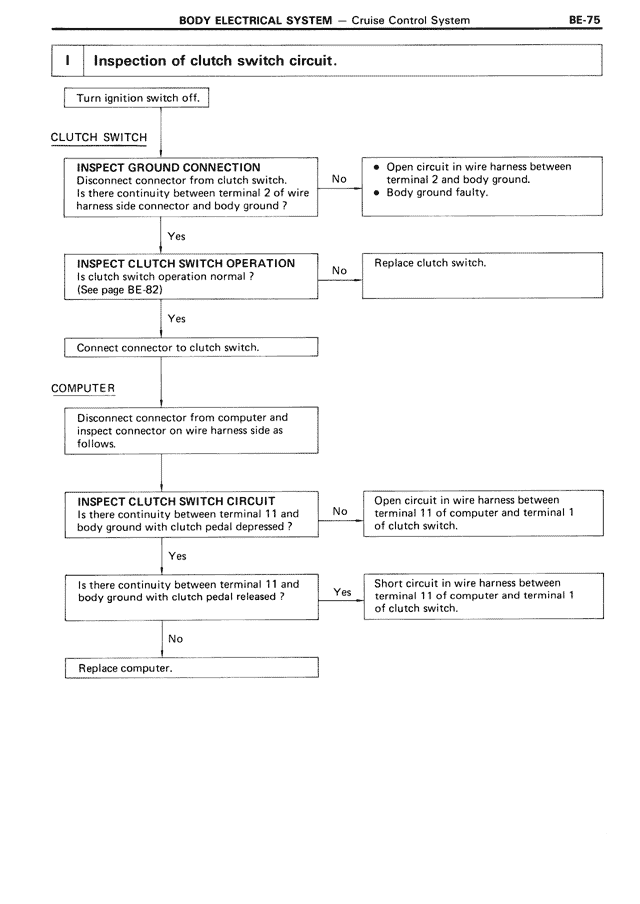

I Inspection of clutch switch circuit.
Turn ignition switch off.
CLUTCH SWITCH
INSPECT GROUND CONNECTION
Disconnect connector from clutch switch.
Is there continuity between terminal 2 of wire
harness side connector and body ground?
No
• Open circuit in wire harness between
terminal 2 and body ground.
• Body ground faulty.
Yes
INSPECT CLUTCH SWITCH OPERATION
Is clutch switch operation normal?
(See page BE-82)
No
Replace clutch switch.
Yes
Connect connector to clutch switch.
COMPUTER
Disconnect connector from computer and
inspect connector on wire harness side as
follows:
INSPECT CLUTCH SWITCH CIRCUIT
Is there continuity between terminal 11 and
body ground with clutch pedal depressed?
No
Open circuit in wire harness between
terminal 11 of computer and terminal 1
of clutch switch.
Yes
Is there continuity between terminal 11 and
body ground with clutch pedal released?
Yes
Short circuit in wire harness between
terminal 11 of computer and terminal 1
of clutch switch.
No
Replace computer.
