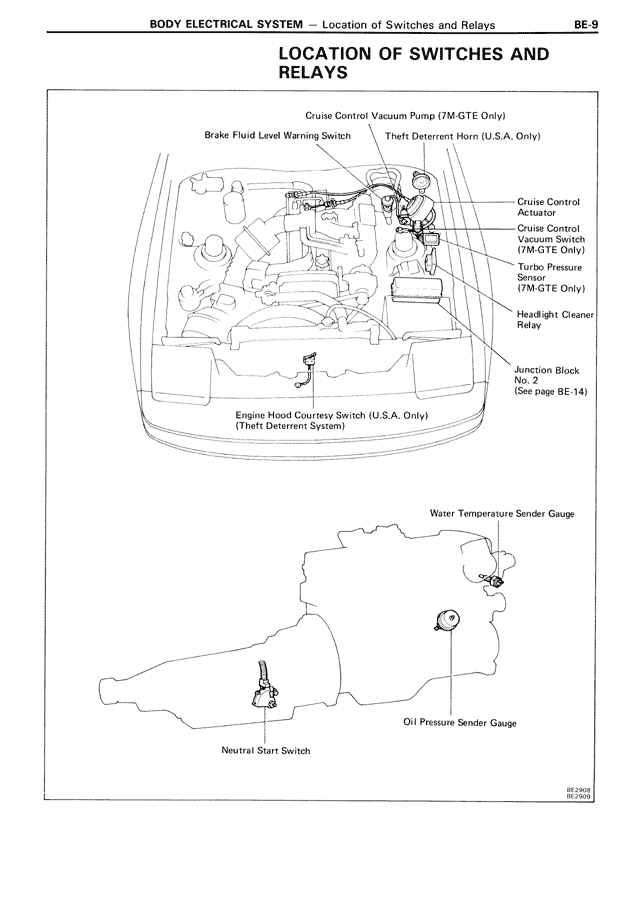

LOCATION OF SWITCHES AND RELAYS
Cruise Control Vacuum Pump (7M-GTE Only)
Brake Fluid Level Warning Switch
Theft Deterrent Horn (U.S.A. Only)
Cruise Control Actuator
Cruise Control Vacuum Switching Valve (7M-GTE Only)
Turbo Pressure Switch (7M-GTE Only)
Headlight Cleaner Relay
Junction Block No. 2 (See page BE-14)
Engine Hood Courtesy Switch (U.S.A. Only) (Theft Deterrent System)
Water Temperature Sender Gauge
Oil Pressure Sender Gauge
Neutral Start Switch
