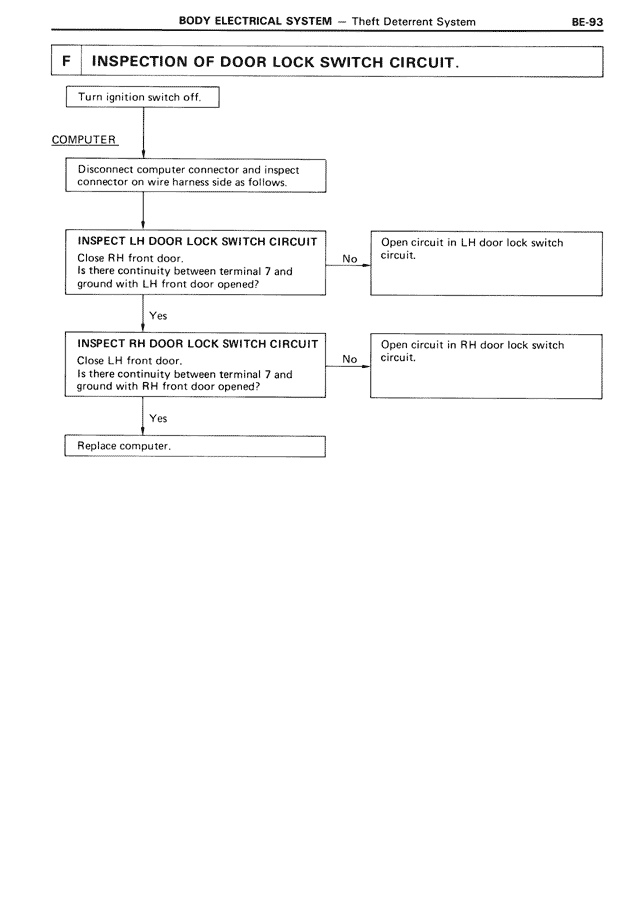

F INSPECTION OF DOOR LOCK SWITCH CIRCUIT.
Turn ignition switch off.
COMPUTER.
Disconnect computer connector and inspect
connector on wire harness side as follows.
INSPECT LH DOOR LOCK SWITCH CIRCUIT
Close RH front door.
Is there continuity between terminal 7 and
ground with LH front door opened?
No → Open circuit in LH door lock switch
circuit.
↓ Yes
INSPECT RH DOOR LOCK SWITCH CIRCUIT
Close LH front door.
Is there continuity between terminal 7 and
ground with RH front door opened?
No → Open circuit in RH door lock switch
circuit.
↓ Yes
Replace computer.
