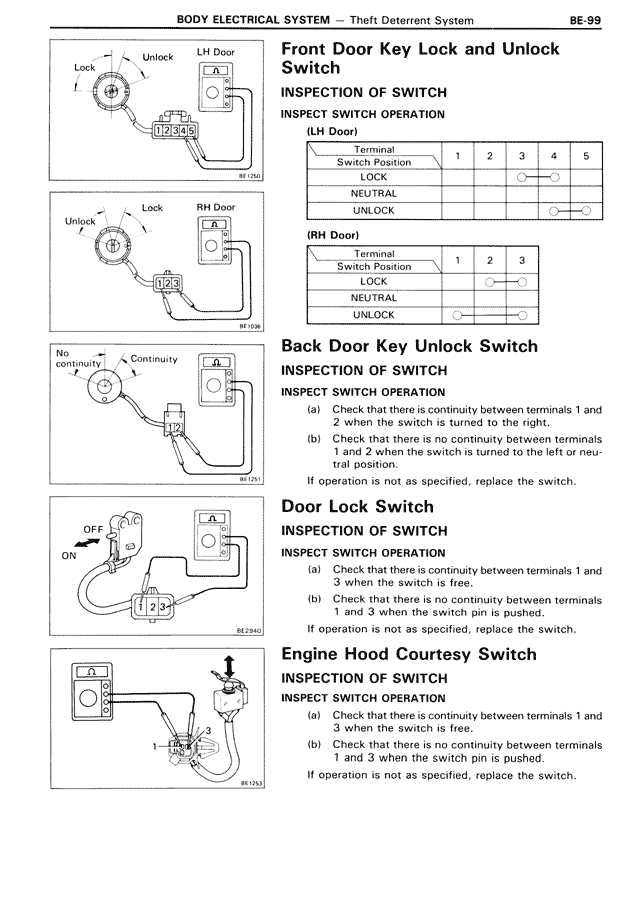

Front Door Key Lock and Unlock
Switch
INSPECTION OF SWITCH
INSPECT SWITCH OPERATION
(LH Door)
Terminal
Switch Position 1 2 3 4 5
LOCK
NEUTRAL
UNLOCK
(RH Door)
Terminal
Switch Position 1 2 3
LOCK
NEUTRAL
UNLOCK
Back Door Key Unlock Switch
INSPECTION OF SWITCH
INSPECT SWITCH OPERATION
(a) Check that there is continuity between terminals 1 and
2 when the switch is turned to the right.
(b) Check that there is no continuity between terminals
1 and 2 when the switch is turned to the left or neutral position.
If operation is not as specified, replace the switch.
Door Lock Switch
INSPECTION OF SWITCH
INSPECT SWITCH OPERATION
(a) Check that there is continuity between terminals 1 and
3 when the switch is free.
(b) Check that there is no continuity between terminals
1 and 3 when the switch pin is pushed.
If operation is not as specified, replace the switch.
Engine Hood Courtesy Switch
INSPECTION OF SWITCH
INSPECT SWITCH OPERATION
(a) Check that there is continuity between terminals 1 and
3 when the switch is free.
(b) Check that there is no continuity between terminals
1 and 3 when the switch pin is pushed.
If operation is not as specified, replace the switch.
