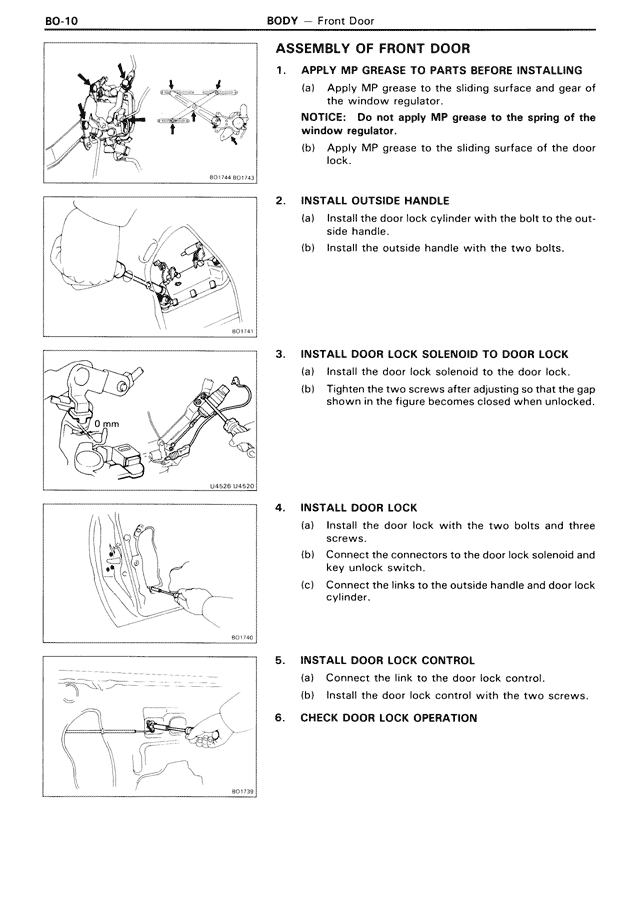

ASSEMBLY OF FRONT DOOR
1. APPLY MP GREASE TO PARTS BEFORE INSTALLING
(a) Apply MP grease to the sliding surface and gear of the window regulator.
NOTICE: Do not apply MP grease to the spring of the window regulator.
(b) Apply MP grease to the sliding surface of the door lock.
2. INSTALL OUTSIDE HANDLE
(a) Install the door lock cylinder with the bolt to the outside handle.
(b) Install the outside handle with the two bolts.
3. INSTALL DOOR LOCK SOLENOID TO DOOR LOCK
(a) Install the door lock solenoid to the door lock.
(b) Tighten the two bolts by adjusting so that the gap shown in the figure becomes closed when unlocked.
0 mm
Should be
4. INSTALL DOOR LOCK
(a) Install the door lock with the two bolts and three screws.
(b) Connect the connectors to the door lock solenoid and key unlock switch.
(c) Connect the links to the outside handle and door lock cylinder.
5. INSTALL DOOR LOCK CONTROL
(a) Connect the link to the door lock control.
(b) Install the door lock control with the two screws.
6. CHECK DOOR LOCK OPERATION
