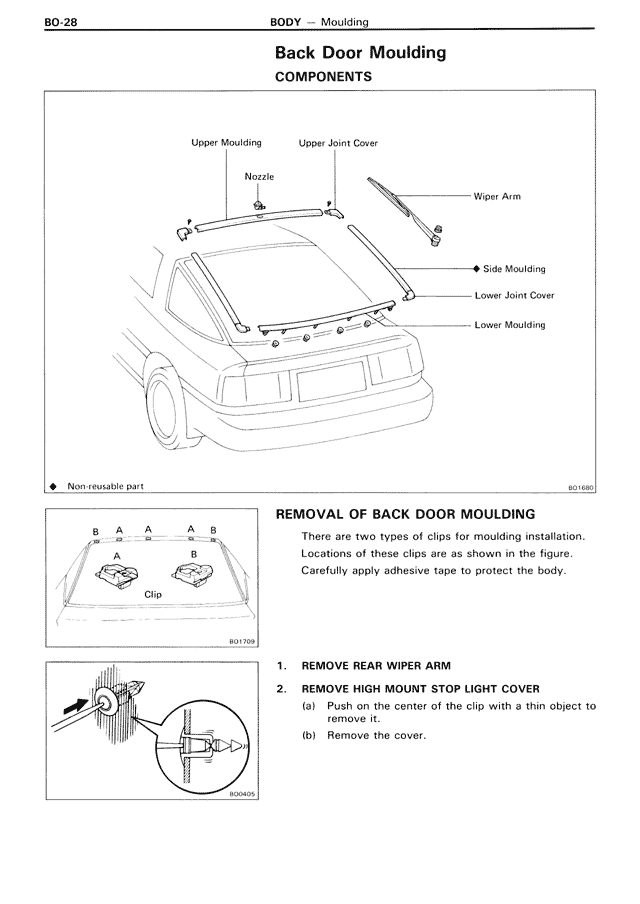

Back Door Moulding COMPONENTS Upper Moulding Upper Joint Cover Nozzle Wiper Arm Side Moulding Lower Joint Cover Lower Moulding Non-reusable part REMOVAL OF BACK DOOR MOULDING There are two types of clips for moulding installation. Locations of these clips are as shown in the figure. Carefully apply adhesive tape to protect the body. B A A A B A B Clip 1. REMOVE REAR WIPER ARM 2. REMOVE HIGH MOUNT STOP LIGHT COVER (a) Push on the center of the clip with a thin object to remove it. (b) Remove the cover.
