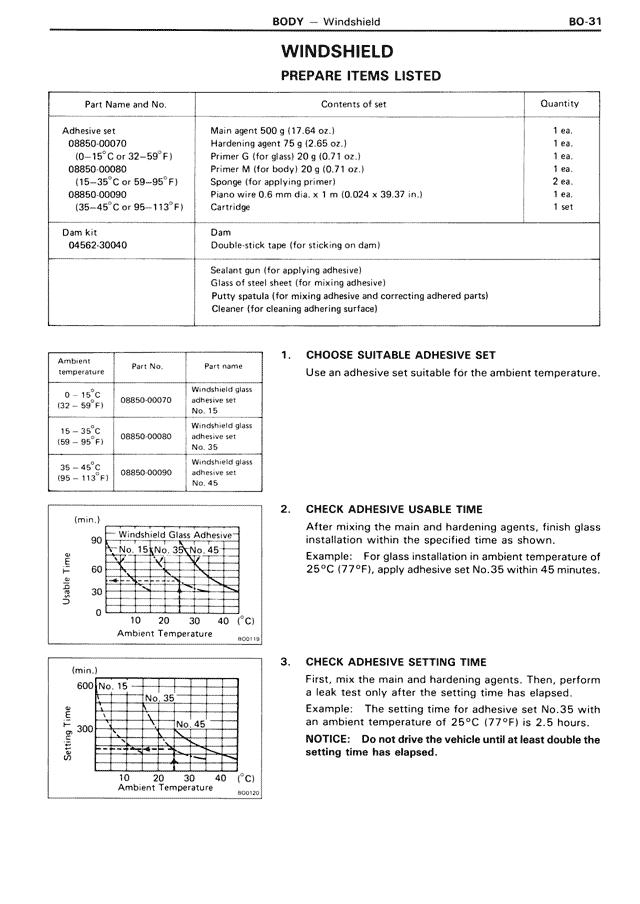

WINDSHIELD
PREPARE ITEMS LISTED
Part Name and No. | Contents of set | Quantity
Adhesive set
08850-00070
(0-15°C or 32-59°F)
08850-00080
(15-35°C or 59-95°F)
08850-00090
(35-45°C or 95-113°F)
Main agent 500 g (17.64 oz.) | 1 ea.
Hardening agent 75 g (2.65 oz.) | 1 ea.
Primer G (for glass) 20 g (0.71 oz.) | 1 ea.
Primer M (for body) 20 g (0.71 oz.) | 1 ea.
Sponge (for applying primer) | 2 ea.
Piano wire 0.6 mm dia. x 1 m (0.024 x 39.37 in.) | 1 ea.
Cartridge | 1 set
Dam kit
04562-30040
Dam
Double-stick tape (for sticking on dam)
Sealant gun (for applying adhesive)
Glass or steel sheet (for mixing adhesive)
Putty spatula (for mixing adhesive and correcting adhered parts)
Cleaner (for cleaning adhering surface)
1. CHOOSE SUITABLE ADHESIVE SET
Use an adhesive set suitable for the ambient temperature.
Ambient temperature | Part No. | Part name
0 - 15°C
(32 - 59°F) | 08850-00070 | Windshield glass adhesive set No. 15
15 - 35°C
(59 - 95°F) | 08850-00080 | Windshield glass adhesive set No. 35
35 - 45°C
(95 - 113°F) | 08850-00090 | Windshield glass adhesive set No. 45
2. CHECK ADHESIVE USABLE TIME
After mixing the main and hardening agents, finish glass installation within the specified time as shown.
Example: For glass installation in ambient temperature of 25°C (77°F), apply adhesive set No.35 within 45 minutes.
[CHART: Usable Time (min.) vs Ambient Temperature (°C) showing curves for Windshield Glass Adhesive No. 15, No. 35, and No. 45, ranging from 0-90 minutes and 0-40°C]
3. CHECK ADHESIVE SETTING TIME
First, mix the main and hardening agents. Then, perform a leak test only after the setting time has elapsed.
Example: The setting time for adhesive set No.35 with an ambient temperature of 25°C (77°F) is 2.5 hours.
NOTICE: Do not drive the vehicle until at least double the setting time has elapsed.
[CHART: Setting Time (min.) vs Ambient Temperature (°C) showing curves for No. 15, No. 35, and No. 45, ranging from 0-600 minutes and 0-40°C]
