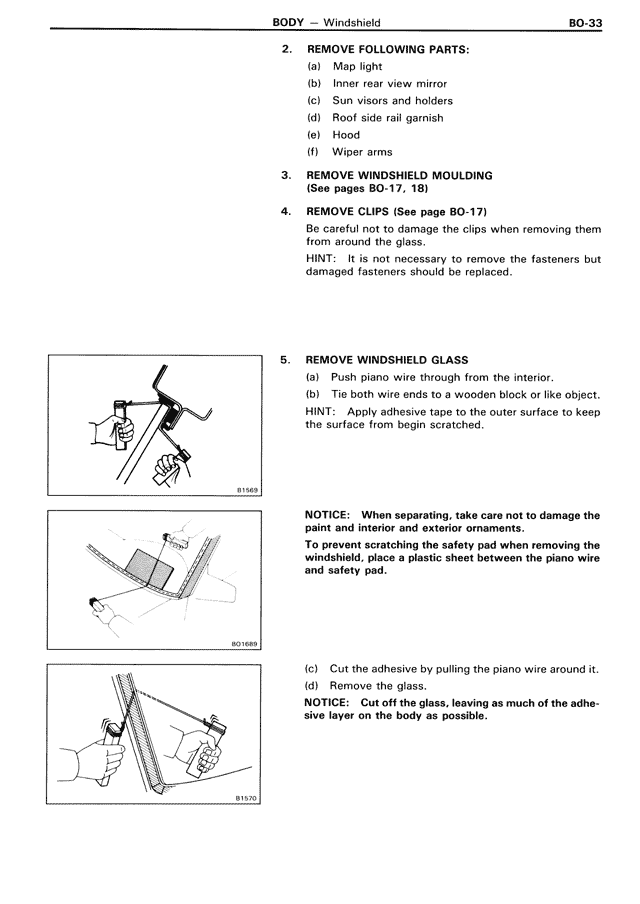

2. REMOVE FOLLOWING PARTS:
(a) Map light
(b) Inner rear view mirror
(c) Sun visors and holders
(d) Roof side rail garnish
(e) Hood
(f) Wiper arms
3. REMOVE WINDSHIELD MOULDING
(See pages BO-17, 18)
4. REMOVE CLIPS (See page BO-17)
Be careful not to damage the clips when removing them from around the glass.
HINT: It is not necessary to remove the fasteners but damaged fasteners should be replaced.
5. REMOVE WINDSHIELD GLASS
(a) Push piano wire through from the interior.
(b) Tie both wire ends to a wooden block or like object.
HINT: Apply adhesive tape to the outer surface to keep the surface from begin scratched.
NOTICE: When separating, take care not to damage the paint and interior ornaments.
To prevent scratching the safety pad when removing the windshield, place a plastic sheet between the piano wire and safety pad.
(c) Cut the adhesive by pulling the piano wire around it.
(d) Remove the glass.
NOTICE: Cut off the glass, leaving as much of the adhesive layer on the body as possible.
