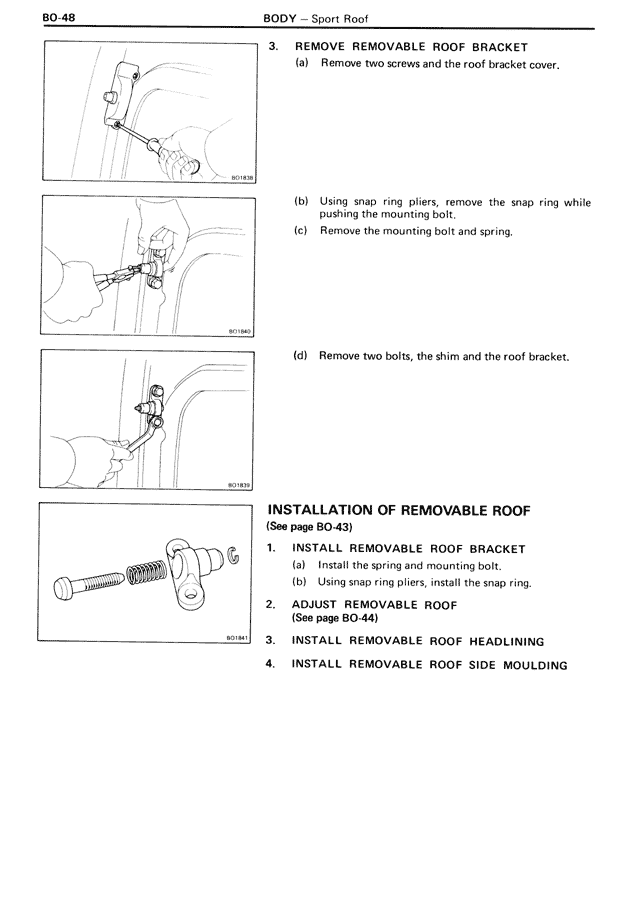

BO-48
BODY — Sport Roof
3. REMOVE REMOVABLE ROOF BRACKET
(a) Remove two screws and the roof bracket cover.
(b) Using snap ring pliers, remove the snap ring while pushing the mounting bolt.
(c) Remove the mounting bolt and spring.
(d) Remove two bolts, the shim and the roof bracket.
INSTALLATION OF REMOVABLE ROOF
(See page BO-43)
1. INSTALL REMOVABLE ROOF BRACKET
(a) Install the spring and mounting bolt.
(b) Using snap ring pliers, install the snap ring.
2. ADJUST REMOVABLE ROOF
(See page BO-44)
3. INSTALL REMOVABLE ROOF HEADLINING
4. INSTALL REMOVABLE ROOF SIDE MOULDING
