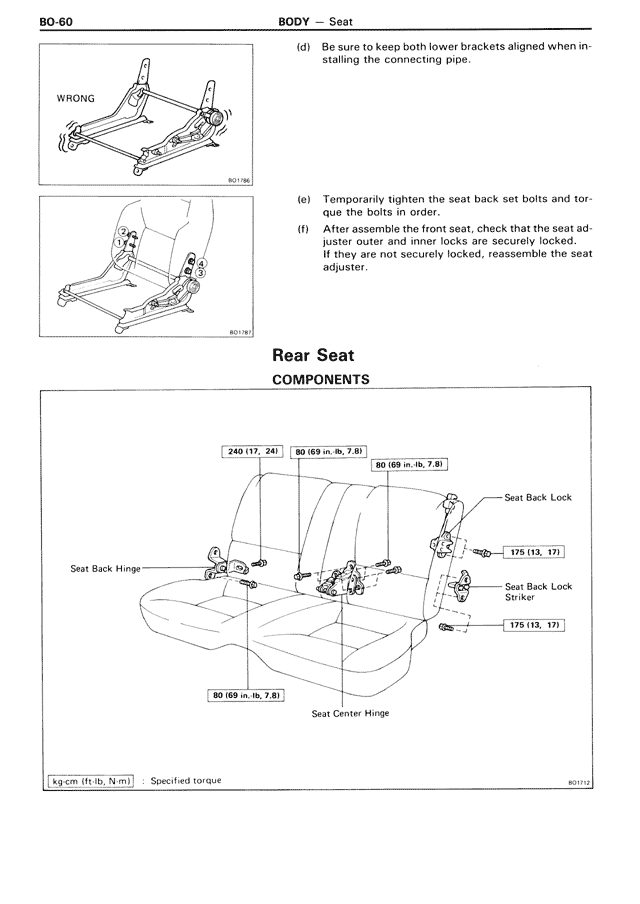

BO-60
BODY — Seat
WRONG
BO1786
BO1787
(d) Be sure to keep both lower brackets aligned when installing the connecting pipe.
(e) Temporarily tighten the seat back set bolts and torque the bolts in order.
(f) After assemble the front seat, check that the seat adjuster outer and inner locks are securely locked. If they are not securely locked, reassemble the seat adjuster.
Rear Seat
COMPONENTS
240 [17, 24]
80 [69 in.-lb, 7.8]
80 [69 in.-lb, 7.8]
Seat Back Lock
175 [13, 17]
Seat Back Lock Striker
175 [13, 17]
Seat Back Hinge
80 [69 in.-lb, 7.8]
Seat Center Hinge
kg·cm [ft·lb, N·m] : Specified torque
BO1712
