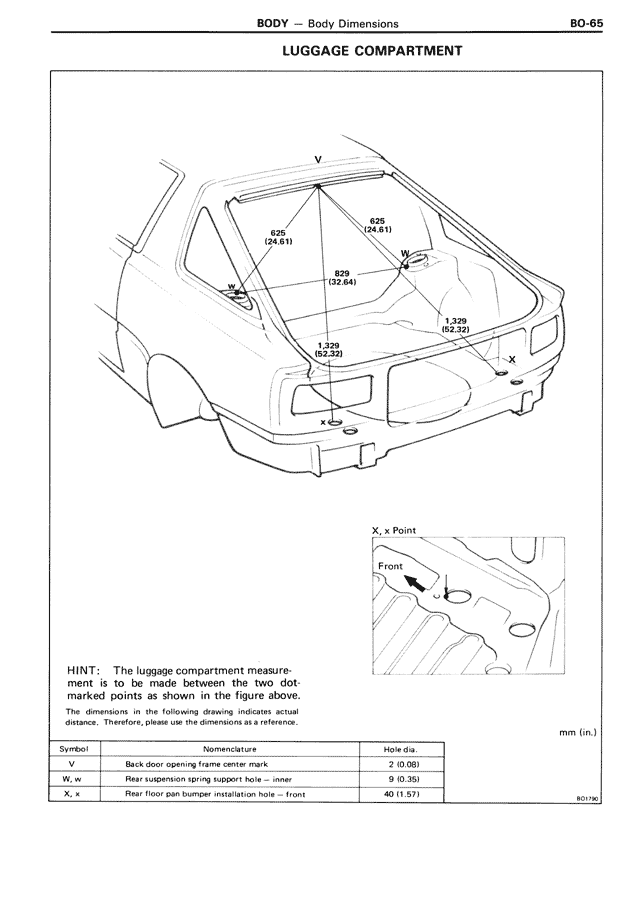

LUGGAGE COMPARTMENT V 625 (24.61) 625 (24.61) 829 (32.64) 1,329 (52.32) 1,329 (52.32) X, x X, x Point Front HINT: The luggage compartment measurement is to be made between the two dotmarked points as shown in the figure above. The dimensions in the following drawing indicate actual distance. Therefore, please use the dimensions as a reference. mm (in.) Symbol | Nomenclature | Hole dia. V | Back door opening frame center mark | 2 (0.08) W, w | Rear suspension spring support hole – inner | 8 (0.35) X, x | Rear floor pan bumper installation hole – front | 40 (1.57) BO7/92
