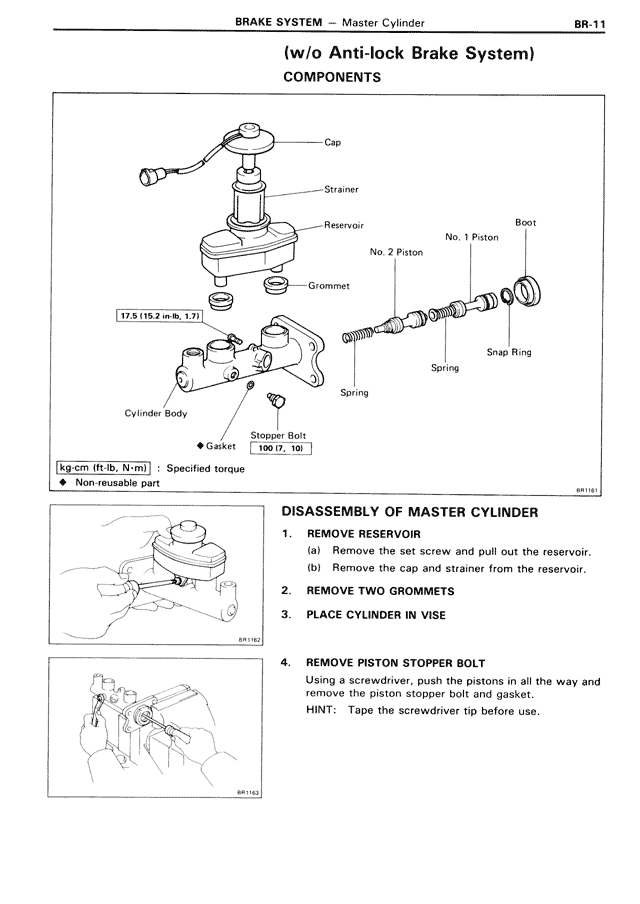

(w/o Anti-lock Brake System)
COMPONENTS
Cap
Strainer
Reservoir
No. 2 Piston
No. 1 Piston
Boot
Grommet
Snap Ring
Spring
17.5 [15.2 m, 1.77]
Spring
Cylinder Body
Stopper Bolt
100 [7, 10]
Gasket
[kg·cm (ft·lb, N·m)] : Specified torque
◆ Non-reusable part
BR1161
DISASSEMBLY OF MASTER CYLINDER
1. REMOVE RESERVOIR
(a) Remove the set screw and pull out the reservoir.
(b) Remove the cap and strainer from the reservoir.
2. REMOVE TWO GROMMETS
3. PLACE CYLINDER IN VISE
BR1162
4. REMOVE PISTON STOPPER BOLT
Using a screwdriver, push the pistons in all the way and remove the piston stopper bolt and gasket.
HINT: Tape the screwdriver tip before use.
BR1163
