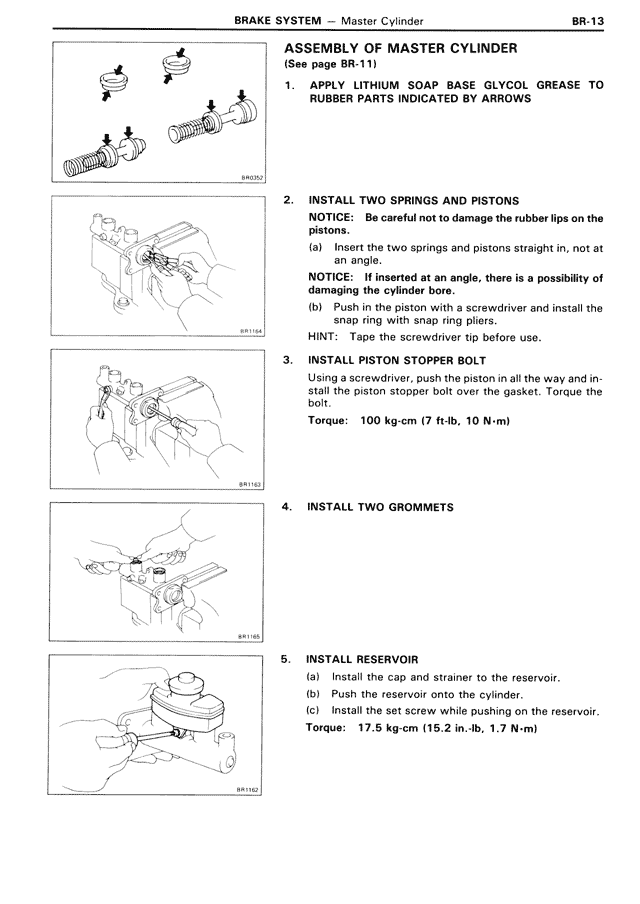

ASSEMBLY OF MASTER CYLINDER (See page BR-11) 1. APPLY LITHIUM SOAP BASE GLYCOL GREASE TO RUBBER PARTS INDICATED BY ARROWS 2. INSTALL TWO SPRINGS AND PISTONS NOTICE: Be careful not to damage the rubber lips on the pistons. (a) Insert the two springs and pistons straight in, not at an angle. NOTICE: If inserted at an angle, there is a possibility of damaging the cylinder bore. (b) Push in the piston with a screwdriver and install the snap ring with snap ring pliers. HINT: Tape the screwdriver tip before use. 3. INSTALL PISTON STOPPER BOLT Using a screwdriver, push the piston in all the way and install the piston stopper bolt over the gasket. Torque the bolt. Torque: 100 kg-cm (7 ft-lb, 10 N·m) 4. INSTALL TWO GROMMETS 5. INSTALL RESERVOIR (a) Install the cap and strainer to the reservoir. (b) Push the reservoir onto the cylinder. (c) Install the set screw while pushing on the reservoir. Torque: 17.5 kg-cm (15.2 in.-lb, 1.7 N·m)
