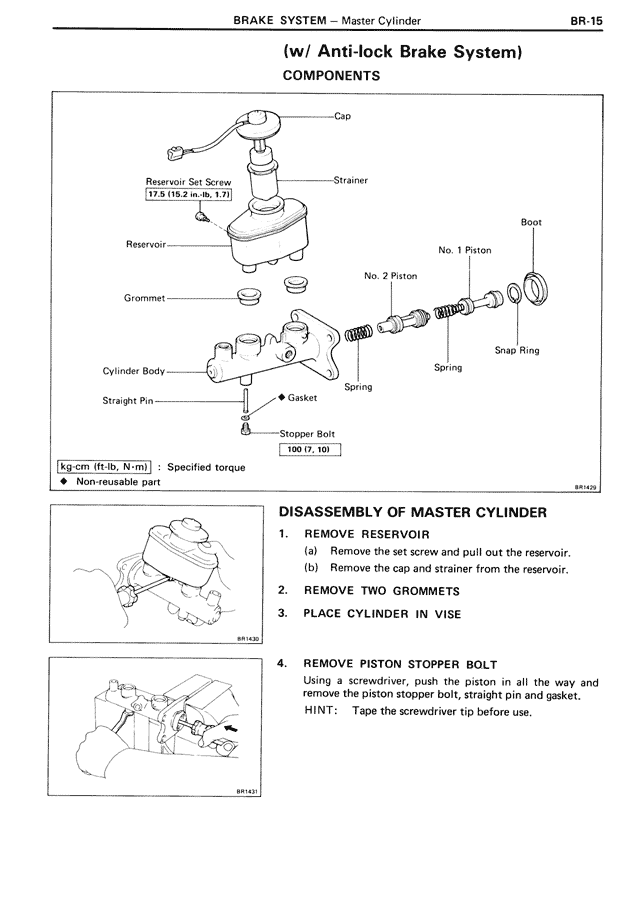

BRAKE SYSTEM — Master Cylinder BR-15 (w/ Anti-lock Brake System) COMPONENTS [Diagram showing master cylinder components with labels:] Cap Reservoir Set Screw 17.5 {1.8 x m, 13} Strainer Reservoir Boot No. 1 Piston No. 2 Piston Snap Ring Spring Grommet Cylinder Body Spring Gasket Straight Pin Stopper Bolt 100 {7, 10} kg·cm {ft·lb, N·m} : Specified torque ♦ Non-reusable part BR15/24 DISASSEMBLY OF MASTER CYLINDER 1. REMOVE RESERVOIR (a) Remove the set screw and pull out the reservoir. (b) Remove the cap and strainer from the reservoir. 2. REMOVE TWO GROMMETS 3. PLACE CYLINDER IN VISE BR15/25 4. REMOVE PISTON STOPPER BOLT Using a screwdriver, push the piston in all the way and remove the piston stopper bolt, straight pin and gasket. HINT: Tape the screwdriver tip before use. BR15/41
