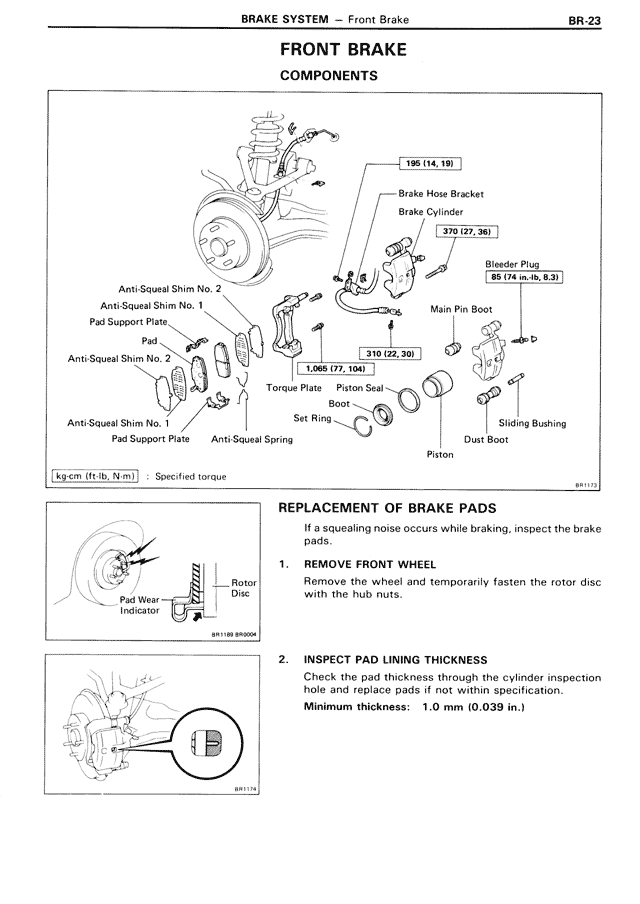

FRONT BRAKE
COMPONENTS
[Diagram shows front brake assembly with labeled components]
Anti-Squeal Shim No. 2
Anti-Squeal Shim No. 1
Pad Support Plate
Pad
Anti-Squeal Shim No. 2
Pad Support Plate
Anti-Squeal Shim No. 1
Anti-Squeal Spring
Brake Hose Bracket
Brake Cylinder
195 [14, 19]
370 [27, 38]
Bleeder Plug
85 [74 in.-lb, 8.3]
Main Pin Boot
310 [22, 30]
1,065 [77, 104]
Torque Plate
Piston Seal
Boot
Set Ring
Sliding Bushing
Dust Boot
Piston
kg·cm [ft·lb, N·m] : Specified torque
REPLACEMENT OF BRAKE PADS
If a squealing noise occurs while braking, inspect the brake pads.
1. REMOVE FRONT WHEEL
Remove the wheel and temporarily fasten the rotor disc with the hub nuts.
[Diagram shows wheel removal with Pad Wear Indicator, Rotor Disc labeled]
2. INSPECT PAD LINING THICKNESS
Check the pad thickness through the cylinder inspection hole and replace pads if not within specification.
Minimum thickness: 1.0 mm (0.039 in.)
[Diagram shows pad thickness inspection]
