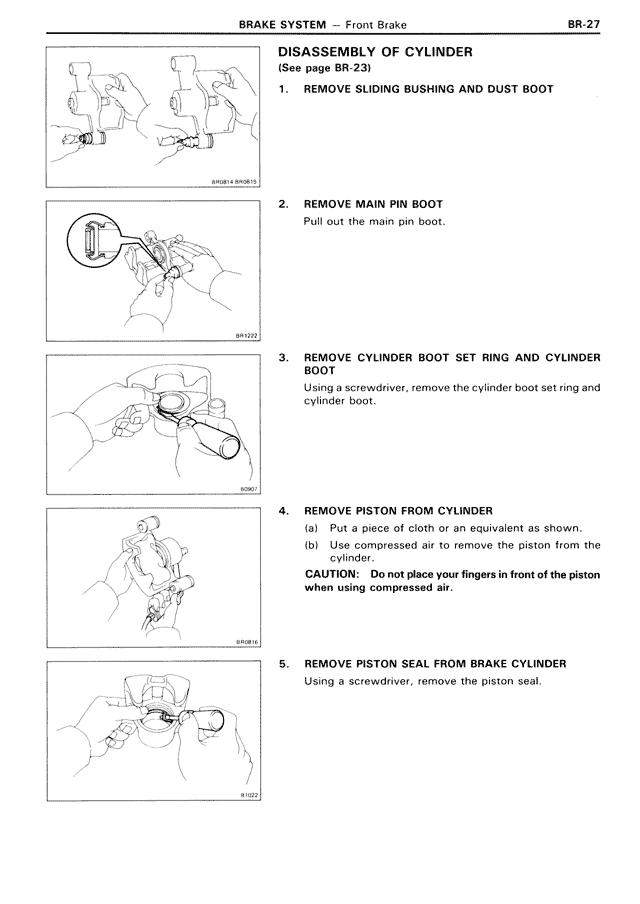

DISASSEMBLY OF CYLINDER
(See page BR-23)
1. REMOVE SLIDING BUSHING AND DUST BOOT
2. REMOVE MAIN PIN BOOT
Pull out the main pin boot.
3. REMOVE CYLINDER BOOT SET RING AND CYLINDER BOOT
Using a screwdriver, remove the cylinder boot set ring and cylinder boot.
4. REMOVE PISTON FROM CYLINDER
(a) Put a piece of cloth in an equivalent as shown.
(b) Use compressed air to remove the piston from the cylinder.
CAUTION: Do not place your fingers in front of the piston when using compressed air.
5. REMOVE PISTON SEAL FROM BRAKE CYLINDER
Using a screwdriver, remove the piston seal.
