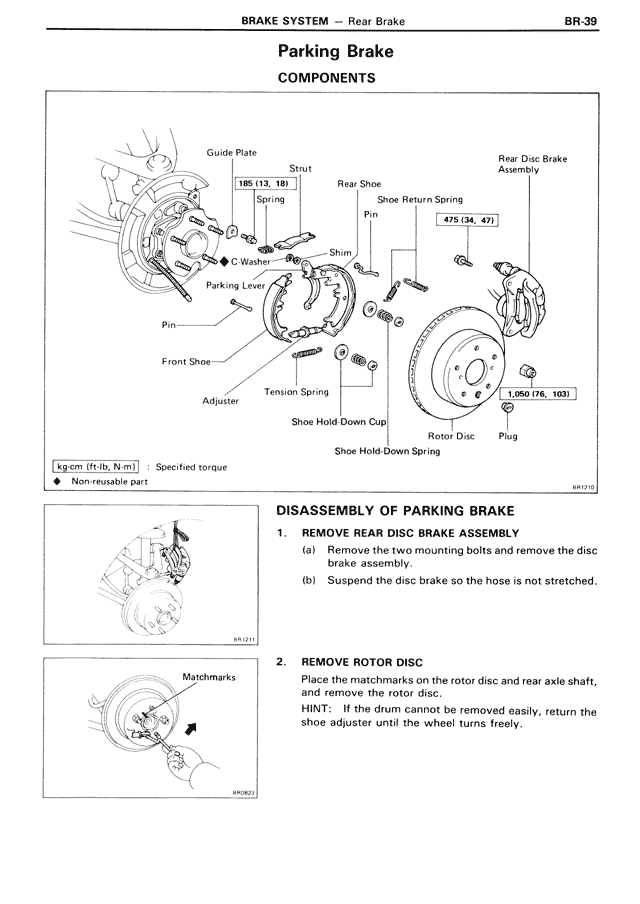

Parking Brake COMPONENTS Guide Plate Strut Rear Disc Brake Assembly [185 (13, 18)] Rear Shoe Spring Shoe Return Spring Pin 475 (34, 47) C-Washer Shim Parking Lever Pin Front Shoe Adjuster Tension Spring Shoe Hold Down Cup 1,050 (76, 103) Rotor Disc Plug Shoe Hold Down Spring kg·cm (ft·lb, N·m) : Specified torque ◆ Non-reusable part BR1270 DISASSEMBLY OF PARKING BRAKE 1. REMOVE REAR DISC BRAKE ASSEMBLY (a) Remove the two mounting bolts and remove the disc brake assembly. (b) Suspend the disc brake so the hose is not stretched. BR1271 2. REMOVE ROTOR DISC Place the matchmarks on the rotor disc and rear axle shaft, and remove the rotor disc. HINT: If the drum cannot be removed easily, return the shoe adjuster until the wheel turns freely. Matchmarks BR0822
