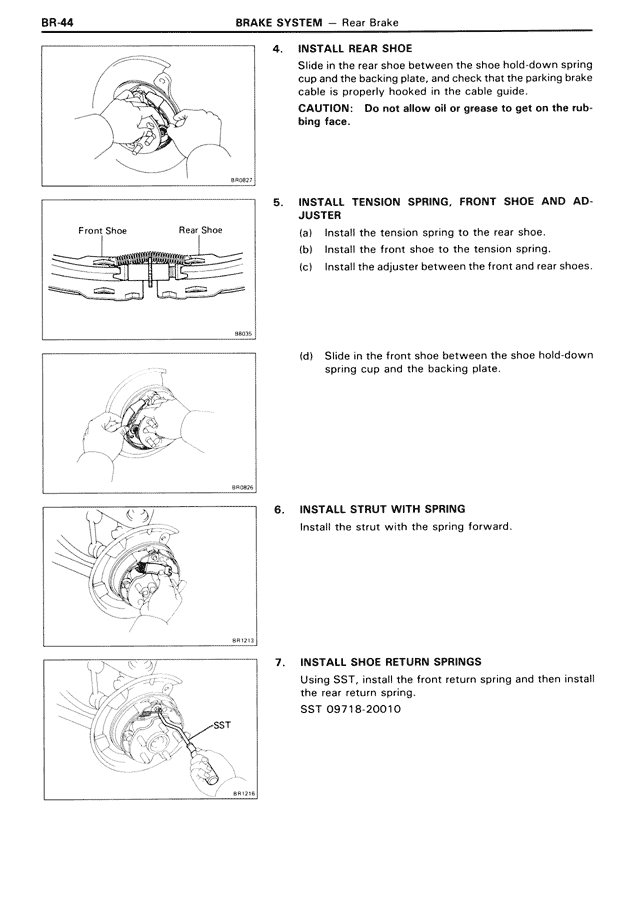

BR-44
BRAKE SYSTEM — Rear Brake
4. INSTALL REAR SHOE
Slide in the rear shoe between the shoe hold-down spring cup and the backing plate, and check that the parking brake cable is properly hooked in the cable guide.
CAUTION: Do not allow oil or grease to get on the rubbing face.
5. INSTALL TENSION SPRING, FRONT SHOE AND ADJUSTER
(a) Install the tension spring to the rear shoe.
(b) Install the front shoe to the tension spring.
(c) Install the adjuster between the front rear shoes.
(d) Slide in the front shoe between the shoe hold-down spring cup and the backing plate.
6. INSTALL STRUT WITH SPRING
Install the strut with the spring forward.
7. INSTALL SHOE RETURN SPRINGS
Using SST, install the front return spring and then install the rear return spring.
SST 09718-20010
