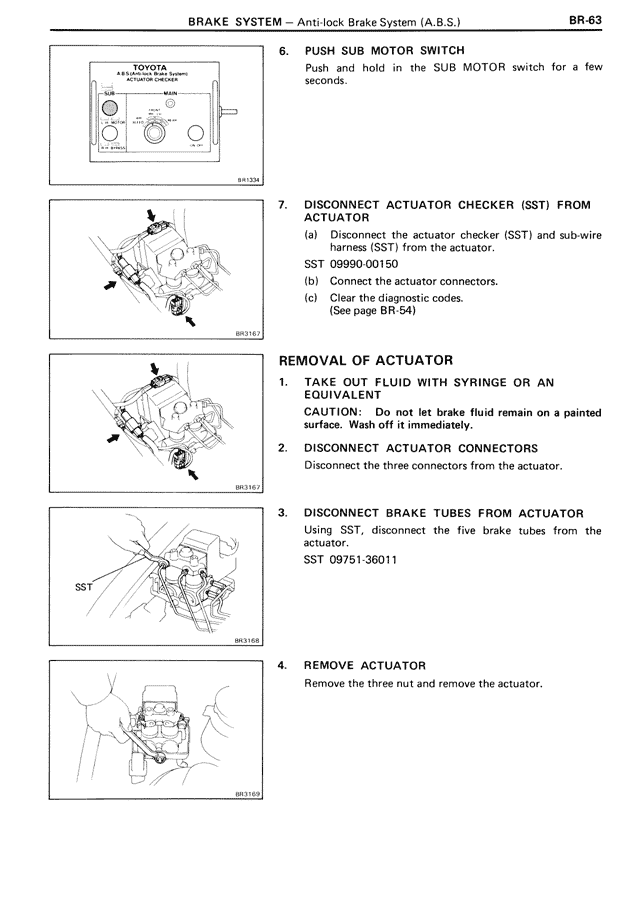

6. PUSH SUB MOTOR SWITCH
Push and hold in the SUB MOTOR switch for a few seconds.
7. DISCONNECT ACTUATOR CHECKER (SST) FROM ACTUATOR
(a) Disconnect the actuator checker (SST) and sub-wire harness (SST) from the actuator.
SST 09990 00150
(b) Connect the actuator connectors.
(c) Clear the diagnostic codes.
(See page BR-54)
REMOVAL OF ACTUATOR
1. TAKE OUT FLUID WITH SYRINGE OR AN EQUIVALENT
CAUTION: Do not let brake fluid remain on a painted surface. Wash off it immediately.
2. DISCONNECT ACTUATOR CONNECTORS
Disconnect the three connectors from the actuator.
3. DISCONNECT BRAKE TUBES FROM ACTUATOR
Using SST, disconnect the five brake tubes from the actuator.
SST 09751-36011
4. REMOVE ACTUATOR
Remove the three nut and remove the actuator.
