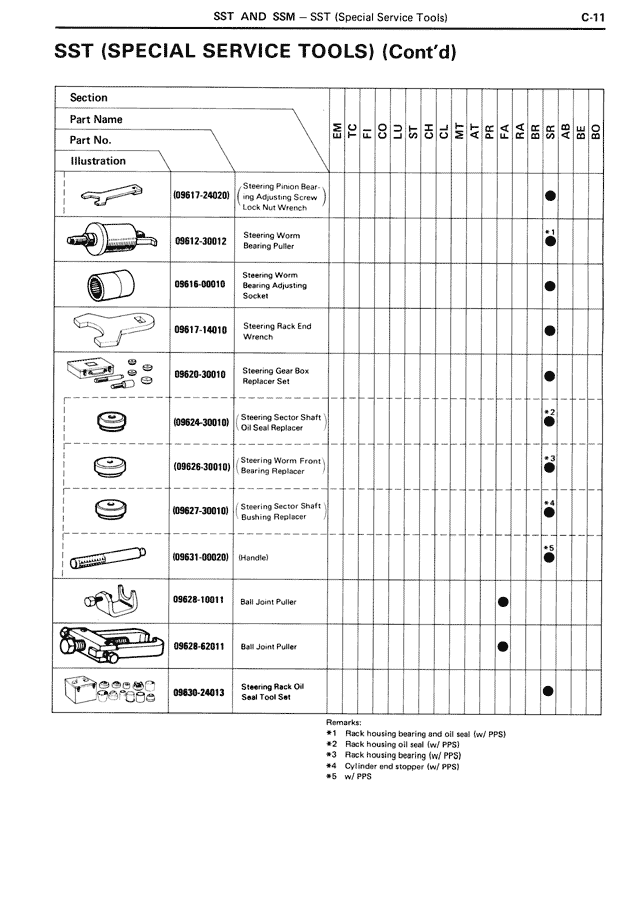

SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09617-24020 | Steering Pinion Bearing Adjusting Screw Lock Nut Wrench | BE
09612-30012 | Steering Worm Bearing Puller | BE
09616-00010 | Steering Worm Bearing Adjusting Socket | BE
09617-14010 | Steering Rack End Wrench | BE
09620-30010 | Steering Gear Box Replacer | BE
09624-30010 | Steering Sector Shaft Oil Seal Replacer | BE
09626-30010 | Steering Worm Front Bearing Replacer | BE
09627-30010 | Steering Sector Shaft Bushing Replacer | BE
09631-00020 | (Handle) | BE
09628-10011 | Ball Joint Puller | AT
09628-62011 | Ball Joint Puller | AT
09630-24013 | Steering Rack Oil Seal Tool Set | BE
Remarks:
*1 Rack housing bearing end oil seal (w/ PPS)
*2 Rack housing oil seal (w/ PPS)
*3 Cylinder end bearing (w/ PPS)
*4 Cylinder end stopper (w/ PPS)
*5 w/ PPS
