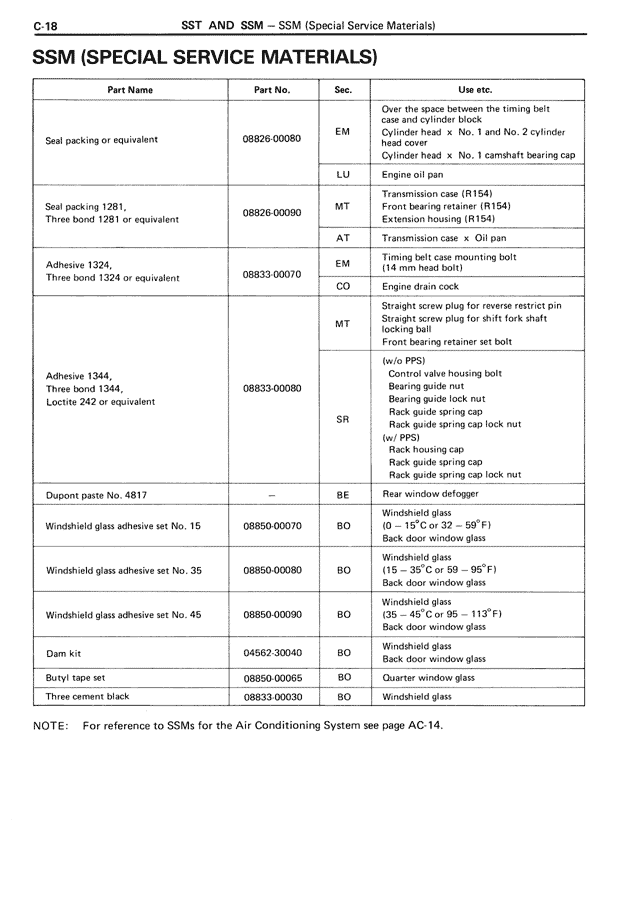

SSM (SPECIAL SERVICE MATERIALS) Part Name | Part No. | Sec. | Use etc. Seal packing or equivalent | 08826-00080 | EM | Over the space between timing belt case and cylinder block | | | Cylinder head × No. 1 and No. 2 cylinder head cover | | | Cylinder head × No. 1 camshaft bearing cap | | LU | Engine oil pan Seal packing 1281, Three bond 1281 or equivalent | 08826-00090 | MT | Transmission case (R154) | | | Front bearing retainer (R154) | | | Extension housing (R154) | | AT | Transmission case × Oil pan Adhesive 1324, Three bond 1324 or equivalent | 08833-00070 | EM | Timing belt case mounting bolt (14 mm head bolt) | | CO | Engine drain cock Adhesive 1344, Three bond 1344, Loctite 242 or equivalent | 08833-00080 | MT | Straight screw plug for reverse restrict pin | | | Straight screw plug for shift fork shaft locking ball | | | Front bearing retainer set bolt | | | (w/o PPS) | | | Control valve housing bolt | | | Bearing guide nut | | | Bearing guide lock nut | | SR | Rack guide nut | | | Rack guide spring cap | | | Rack guide spring cap lock nut | | | (w/ PPS) | | | Rack housing cap | | | Rack guide spring cap | | | Rack guide spring cap lock nut Dupont paint No. 4817 | — | BE | Rear window defogger Windshield glass adhesive set No. 15 | 08850-00070 | BO | Windshield glass | | | (0 – 15°C or 32 – 59°F) | | | Back door window glass Windshield glass adhesive set No. 35 | 08850-00080 | BO | Windshield glass | | | (15 – 35°C or 59 – 95°F) | | | Back door window glass Windshield glass adhesive set No. 45 | 08850-00090 | BO | Windshield glass | | | (35 – 45°C or 95 – 113°F) | | | Back door window glass Dam kit | 04562-30040 | BO | Windshield glass | | | Back door window glass Butyl tape set | 08850-00065 | BO | Quarter window glass Three cement black | 08833-00030 | BO | Windshield glass NOTE: For reference to SSMs for the Air Conditioning System see page AC-14.
