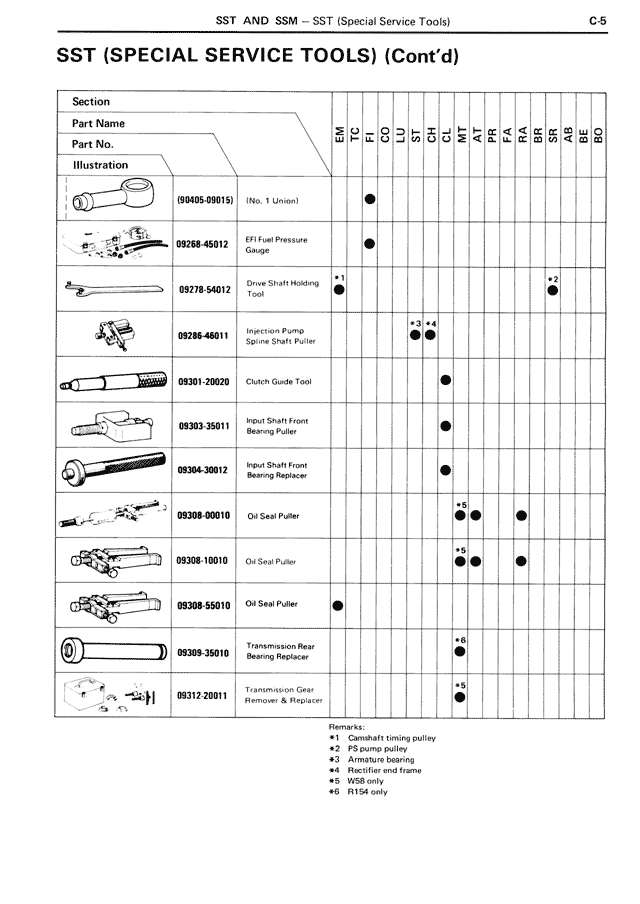

SST AND SSM — SST (Special Service Tools)
SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09405-09015 | (No. 1 Union) | ●
09268-45012 | FI1 Fuel Pressure Gauge | ●
09278-54012 | Drive Shaft Holding Tool | ●*1 | ●*2
09268-46011 | Injection Pump Spline Shaft Puller | ●*3 *4
09301-20020 | Clutch Guide Tool | ●
09303-35011 | Input Shaft Front Bearing Puller | ●
09304-30012 | Input Shaft Front Bearing Replacer | ●
09308-00010 | Oil Seal Puller | ●*5 ● | ●
09308-10010 | Oil Seal Puller | ●*5 ●● | ●
09308-55010 | Oil Seal Puller | ●
09309-35010 | Transmission Rear Bearing Replacer | *6 ●
09312-20011 | Transmission Gear Remover & Replacer | *5 ●
Notes:
*1 Camshaft timing pulley
*2 PS pump pulley
*3 Armature bearing
*4 Faceplate and frame
*5 R150 only
*6 R154 only
