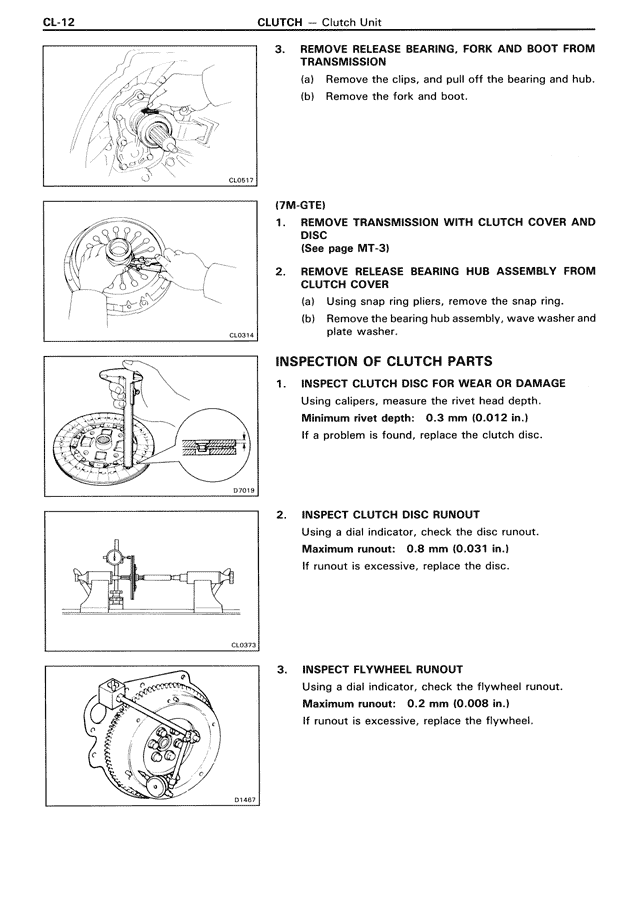

3. REMOVE RELEASE BEARING, FORK AND BOOT FROM TRANSMISSION
(a) Remove the clips, and pull off the bearing and hub.
(b) Remove the fork and boot.
(7M-GTE)
1. REMOVE TRANSMISSION WITH CLUTCH COVER AND DISC
(See page MT-3)
2. REMOVE RELEASE BEARING HUB ASSEMBLY FROM CLUTCH COVER
(a) Using snap ring pliers, remove the snap ring.
(b) Remove the bearing hub assembly, wave washer and plate washer.
INSPECTION OF CLUTCH PARTS
1. INSPECT CLUTCH DISC FOR WEAR OR DAMAGE
Using calipers, measure the rivet head depth.
Minimum rivet depth: 0.3 mm (0.012 in.)
If a problem is found, replace the clutch disc.
2. INSPECT CLUTCH DISC RUNOUT
Using a dial indicator, check the disc runout.
Maximum runout: 0.8 mm (0.031 in.)
If runout is excessive, replace the disc.
3. INSPECT FLYWHEEL RUNOUT
Using a dial indicator, check the flywheel runout.
Maximum runout: 0.2 mm (0.008 in.)
If runout is excessive, replace the flywheel.
