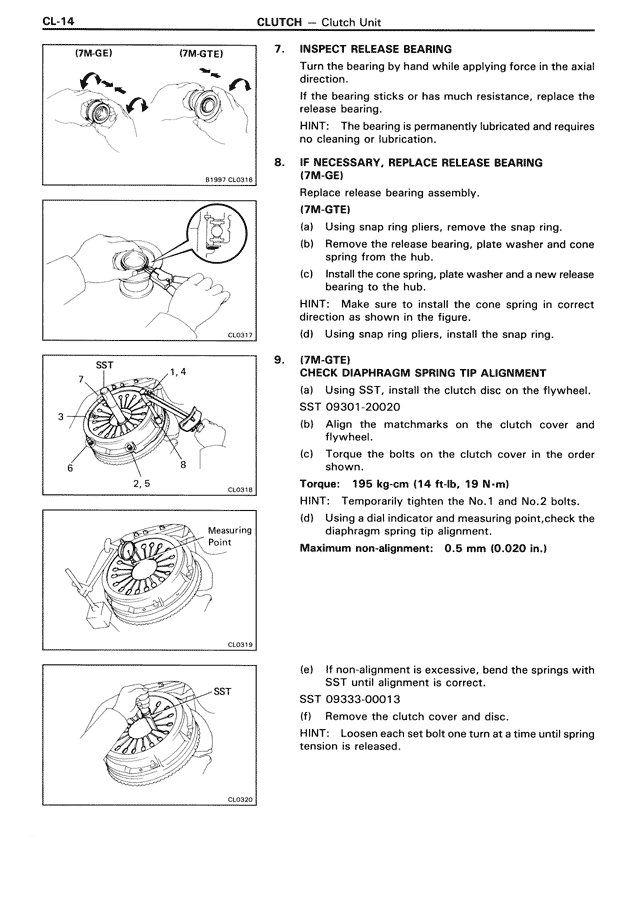

7. INSPECT RELEASE BEARING Turn the bearing by hand while applying force in the axial direction. If the bearing sticks or has much resistance, replace the release bearing. HINT: The bearing is permanently lubricated and requires no cleaning or lubrication. 8. IF NECESSARY, REPLACE RELEASE BEARING (7M-GE) Replace release bearing assembly. (7M-GTE) (a) Using snap ring pliers, remove the snap ring. (b) Remove the release bearing, plate washer and cone spring from the hub. (c) Install the cone spring, plate washer and a new release bearing to the hub. HINT: Make sure to install the cone spring in correct direction as shown in the figure. (d) Using snap ring pliers, install the snap ring. 9. (7M-GTE) CHECK DIAPHRAGM SPRING TIP ALIGNMENT (a) Using SST, install the clutch disc on the flywheel. SST 09301-20020 (b) Align the matchmarks on the clutch cover and flywheel. (c) Torque the bolts on the clutch cover in the order shown. Torque: 195 kg-cm (14 ft-lb, 19 N-m) HINT: Temporarily tighten the No.1 and No.2 bolts. (d) Using a dial indicator and measuring point, check the diaphragm spring tip alignment. Maximum non-alignment: 0.5 mm (0.020 in.) (e) If non-alignment is excessive, bend the springs with SST until alignment is correct. SST 09333-00013 (f) Remove the clutch cover and disc. HINT: Loosen each set bolt one turn at a time until spring tension is released.
