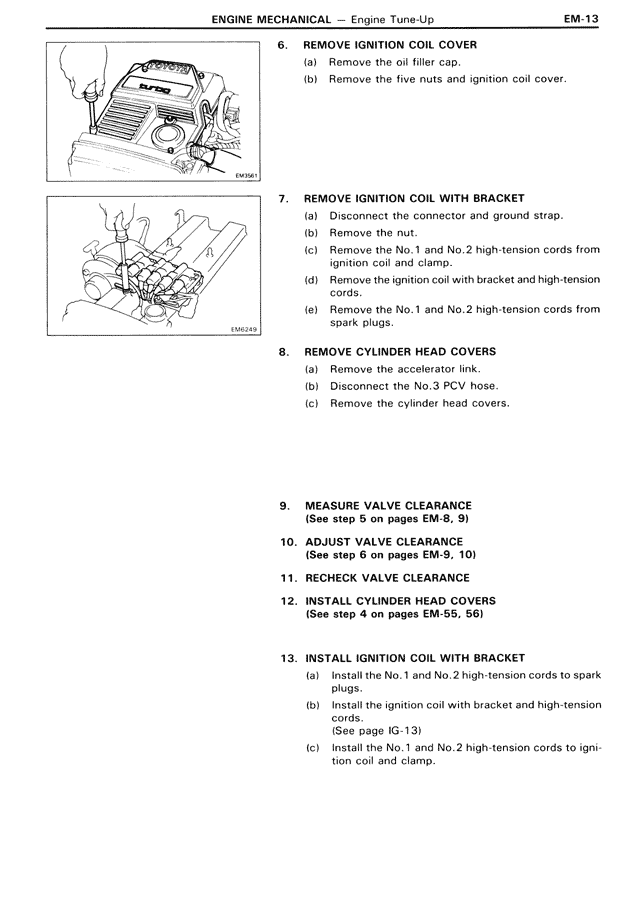

6. REMOVE IGNITION COIL COVER
(a) Remove the oil filler cap.
(b) Remove the five nuts and remove ignition coil cover.
7. REMOVE IGNITION COIL WITH BRACKET
(a) Disconnect the connector and ground strap.
(b) Remove the nut.
(c) Remove the No.1 and No.2 high-tension cords from ignition coil and clamp.
(d) Remove the ignition coil with bracket and high-tension cords.
(e) Remove the No.1 and No.2 high-tension cords from spark plugs.
8. REMOVE CYLINDER HEAD COVERS
(a) Remove the accelerator link.
(b) Disconnect the No.3 PCV hose.
(c) Remove the cylinder head covers.
9. MEASURE VALVE CLEARANCE
(See step 5 on pages EM-8, 9)
10. ADJUST VALVE CLEARANCE
(See step 6 on pages EM-9, 10)
11. RECHECK VALVE CLEARANCE
12. INSTALL CYLINDER HEAD COVERS
(See step 4 on pages EM-55, 56)
13. INSTALL IGNITION COIL WITH BRACKET
(a) Install the No.1 and No.2 high-tension cords to spark plugs.
(b) Install the ignition coil with bracket and high-tension cords.
(See page IG-13)
(c) Install the No.1 and No.2 high-tension cords to ignition coil and clamp.
