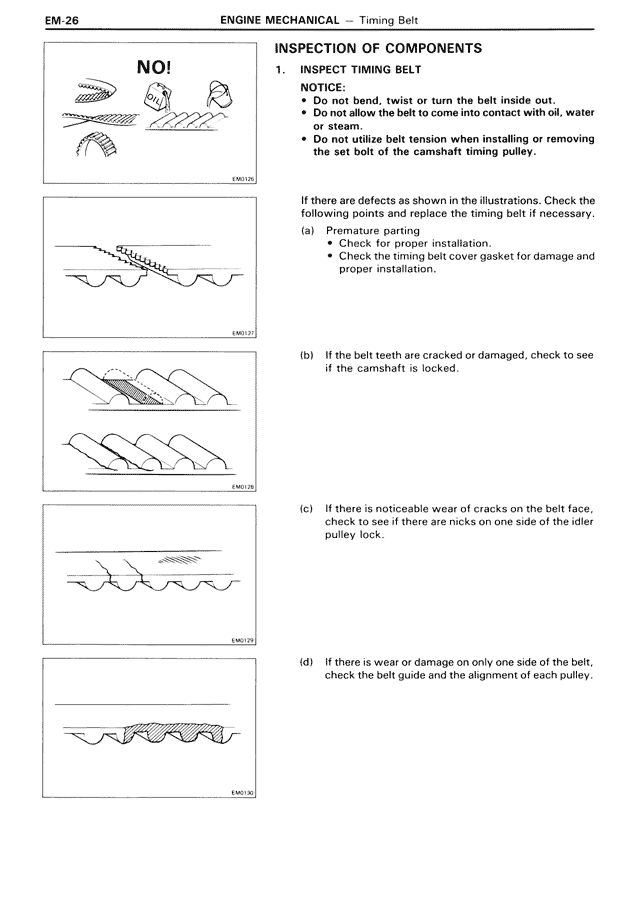

INSPECTION OF COMPONENTS 1. INSPECT TIMING BELT NOTICE: • Do not bend, twist or turn the belt inside out. • Do not allow the belt to come into contact with oil, water or steam. • Do not utilize belt tension when installing or removing the set bolt of the camshaft timing pulley. If there are defects as shown in the illustrations. Check the following points and replace the timing belt if necessary. (a) Premature parting • Check for proper installation. • Check the timing belt cover gasket for damage and proper installation. (b) If the belt teeth are cracked or damaged, check to see if the camshaft is locked. (c) If there is noticeable wear of cracks on the belt face, check to see if there are nicks on one side of the idler pulley lock. (d) If there is wear or damage on only one side of the belt, check the belt guide and the alignment of each pulley.
