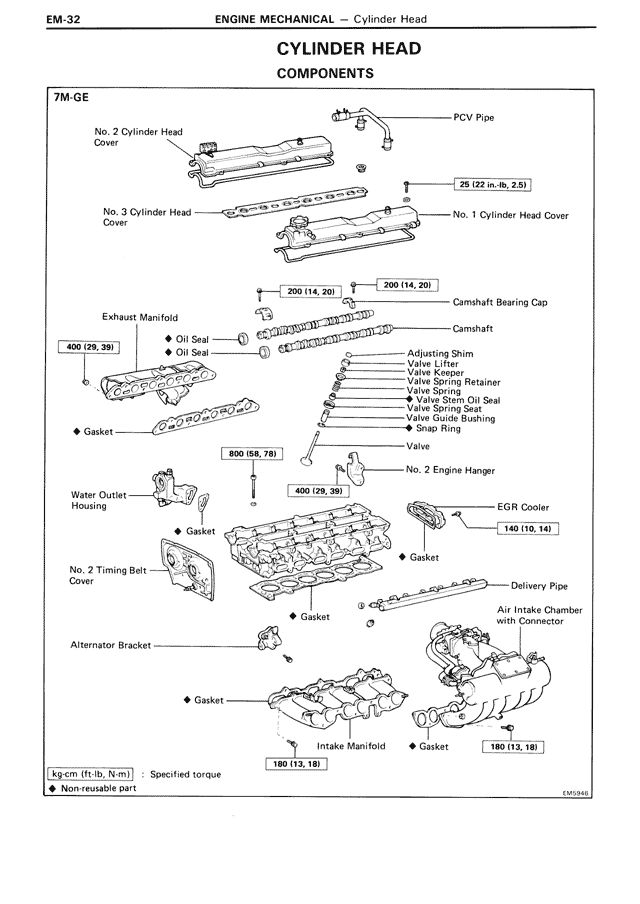

CYLINDER HEAD COMPONENTS 7M-GE No. 2 Cylinder Head Cover PCV Pipe 25 (22 in.-lb, 2.5) No. 3 Cylinder Head Cover No. 1 Cylinder Head Cover 200 (14, 20) 200 (14, 20) Exhaust Manifold Camshaft Bearing Cap Camshaft • Oil Seal Adjusting Shim • Oil Seal Valve Lifter Valve Keeper 400 (29, 39) Valve Spring Retainer Valve Spring ◆ Valve Stem Oil Seal Valve Spring Seat Valve Guide Bushing ◆ Snap Ring Valve ◆ Gasket 800 (58, 78) No. 2 Engine Hanger Water Outlet Housing 400 (29, 39) EGR Cooler 140 (10, 14) ◆ Gasket ◆ Gasket No. 2 Timing Belt Cover Delivery Pipe Air Intake Chamber with Connector ◆ Gasket Alternator Bracket ◆ Gasket Intake Manifold ◆ Gasket 180 (13, 18) 180 (13, 18) 180 (13, 18) kg-cm (ft-lb, N-m) : Specified torque ◆ Non-reusable part EM0936
