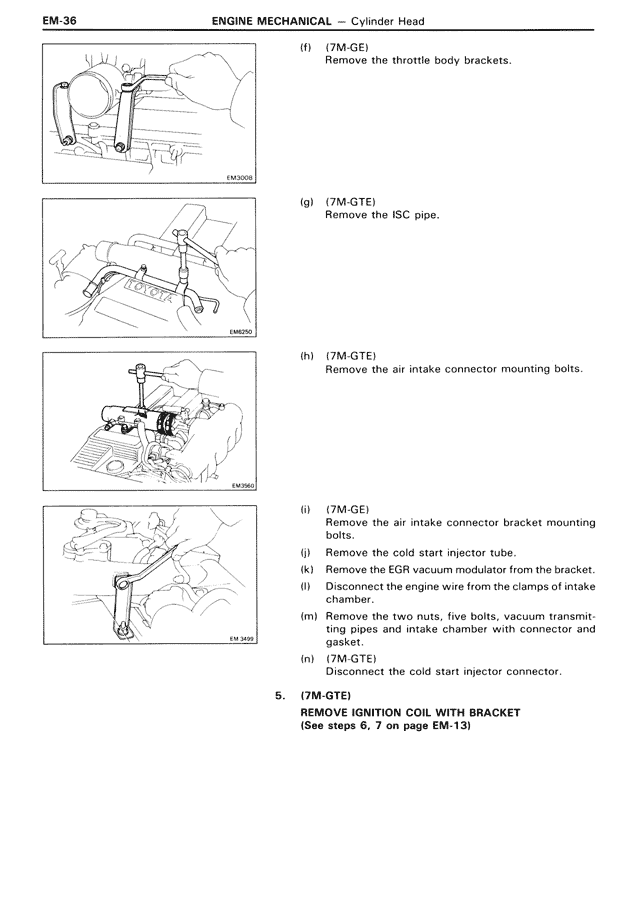

EM-36 ENGINE MECHANICAL — Cylinder Head (f) (7M-GE) Remove the throttle body brackets. (g) (7M-GTE) Remove the ISC pipe. (h) (7M-GTE) Remove the air intake connector mounting bolts. (i) (7M-GE) Remove the air intake connector bracket mounting bolts. (j) Remove the cold start injector tube. (k) Remove the EGR vacuum modulator from the bracket. (l) Disconnect the engine wire from the clamps of intake chamber. (m) Remove the two nuts, five bolts, vacuum transmit- ting pipes and intake chamber with connector and gasket. (n) (7M-GTE) Disconnect the cold start injector connector. 5. (7M-GTE) REMOVE IGNITION COIL WITH BRACKET (See steps 6, 7 on page EM-13)
