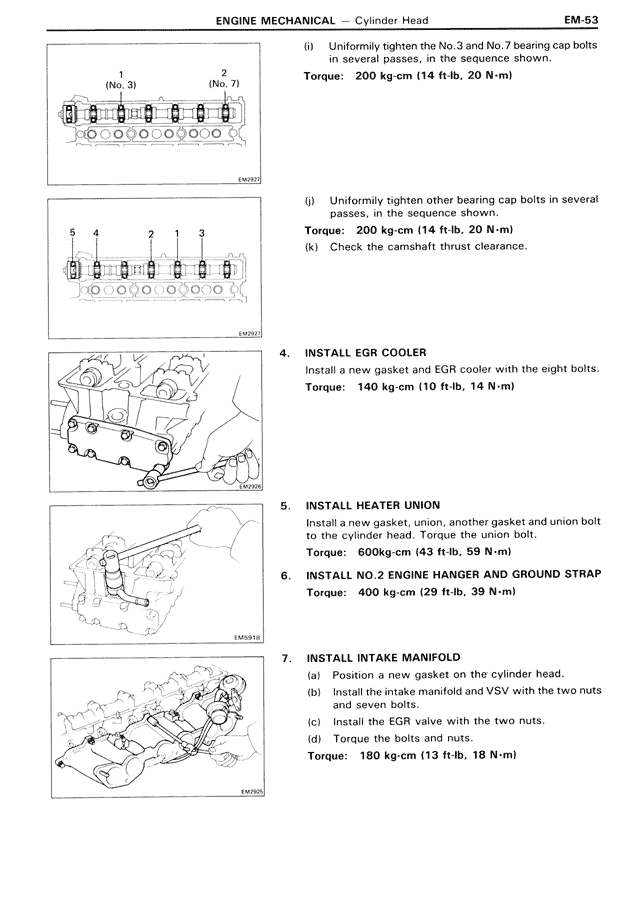

(i) Uniformly tighten the No.3 and No.7 bearing cap bolts in several passes, in the sequence shown.
Torque: 200 kg·cm (14 ft·lb, 20 N·m)
(j) Uniformly tighten other bearing cap bolts in several passes, in the sequence shown.
Torque: 200 kg·cm (14 ft·lb, 20 N·m)
(k) Check the camshaft thrust clearance.
4. INSTALL EGR COOLER
Install a new gasket and EGR cooler with the eight bolts.
Torque: 140 kg·cm (10 ft·lb, 14 N·m)
5. INSTALL HEATER UNION
Install a new gasket, union, another gasket and union bolt to the cylinder head. Torque the union bolt.
Torque: 600kg·cm (43 ft·lb, 59 N·m)
6. INSTALL NO.2 ENGINE HANGER AND GROUND STRAP
Torque: 400 kg·cm (29 ft·lb, 39 N·m)
7. INSTALL INTAKE MANIFOLD
(a) Position a new gasket on the cylinder head.
(b) Install the intake manifold and VSV with the two nuts and seven bolts.
(c) Install the EGR valve with the two nuts.
(d) Torque the bolts and nuts.
Torque: 180 kg·cm (13 ft·lb, 18 N·m)
