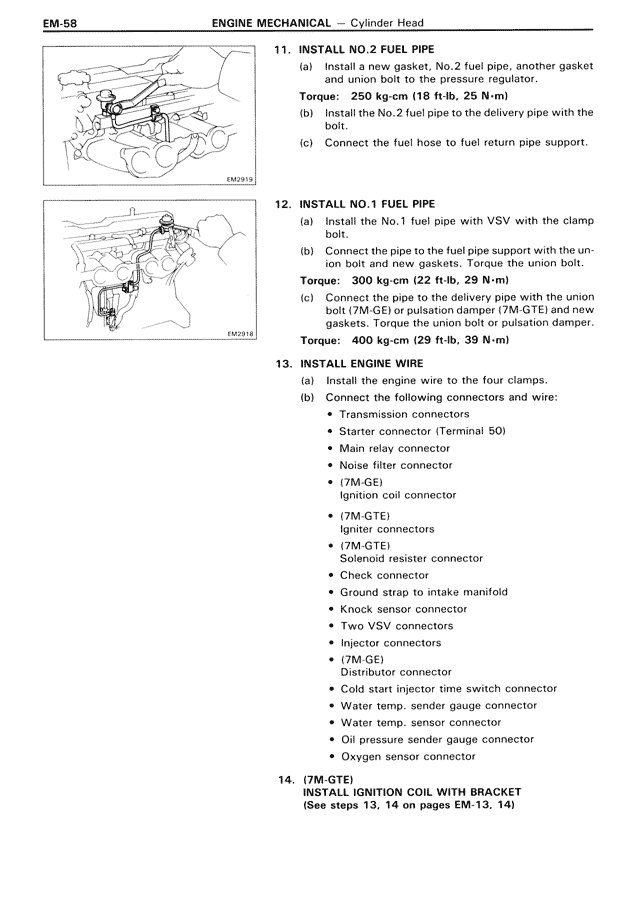

EM-58 ENGINE MECHANICAL — Cylinder Head 11. INSTALL NO.2 FUEL PIPE (a) Install a new gasket, No.2 fuel pipe, another gasket and union bolt to the pressure regulator. Torque: 250 kg·cm (18 ft·lb, 25 N·m) (b) Install the No.2 fuel pipe to the delivery pipe with the bolt. (c) Connect the fuel hose to fuel return pipe support. 12. INSTALL NO.1 FUEL PIPE (a) Install the No.1 fuel pipe with VSV with the clamp bolt. (b) Connect the pipe to the fuel pipe support with the union bolt and new gaskets. Torque the union bolt. Torque: 300 kg·cm (22 ft·lb, 29 N·m) (c) Connect the pipe to the delivery pipe with the union bolt (7M·GE) or pulsation damper (7M·GTE) and new gaskets. Torque the union bolt or pulsation damper. Torque: 400 kg·cm (29 ft·lb, 39 N·m) 13. INSTALL ENGINE WIRE (a) Install the engine wire to the four clamps. (b) Connect the following connectors and wire: • Transmission connectors • Starter connector (Terminal 50) • Main relay connector • Noise filter connector • (7M·GE) Ignition coil connector • (7M·GTE) Igniter connectors • (7M·GTE) Solenoid resister connector • Check connector • Ground strap to intake manifold • Knock sensor connector • Two VSV connectors • Injector connectors • (7M·GE) Distributor connector • Cold start injector time switch connector • Water temp. sender gauge connector • Water temp. sensor connector • Oil pressure sender gauge connector • Oxygen sensor connector 14. (7M·GTE) INSTALL IGNITION COIL WITH BRACKET (See steps 13, 14 on pages EM·13, 14)
