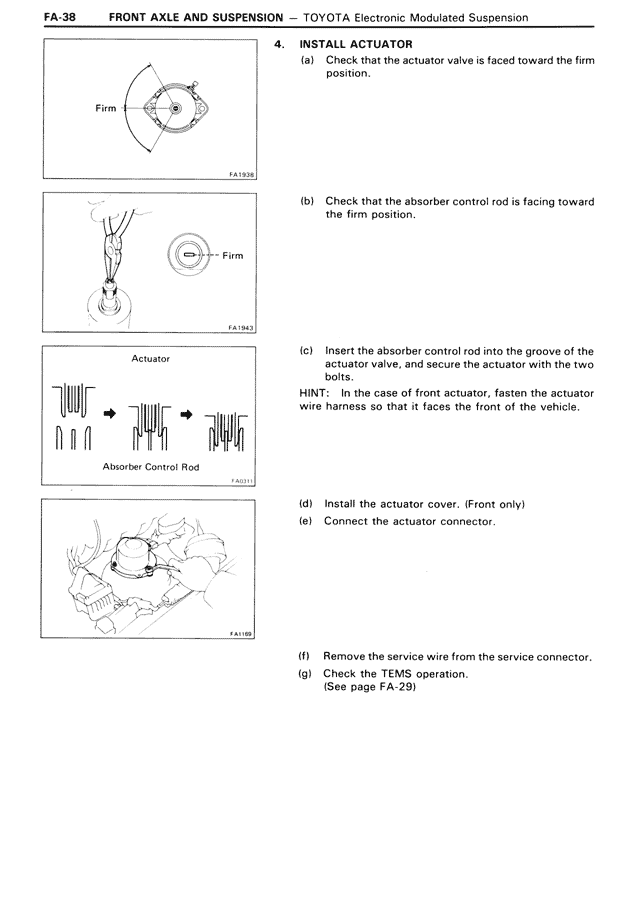

FA-38
FRONT AXLE AND SUSPENSION — TOYOTA Electronic Modulated Suspension
4. INSTALL ACTUATOR
(a) Check that the actuator valve is faced toward the firm position.
Firm
FA1539
(b) Check that the absorber control rod is facing toward the firm position.
Firm
FA1943
(c) Insert the absorber control rod into the groove of the actuator valve, and secure the actuator with the two bolts.
HINT: In the case of front actuator, fasten the actuator wire harness so that it faces the front of the vehicle.
Actuator
Absorber Control Rod
FA0311
(d) Install the actuator cover. (Front only)
(e) Connect the actuator connector.
FA1169
(f) Remove the service wire from the service connector.
(g) Check the TEMS operation.
(See page FA-29)
