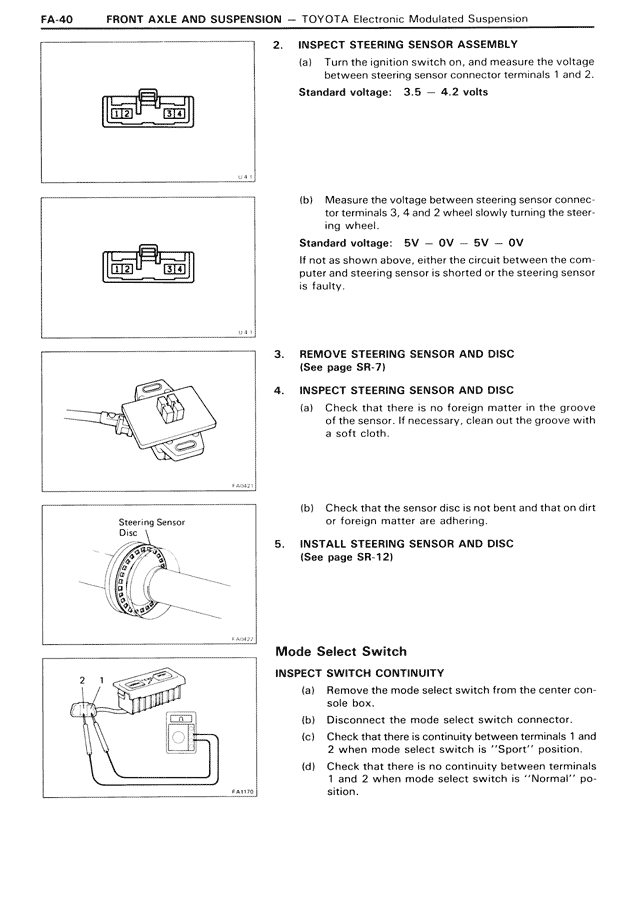

2. INSPECT STEERING SENSOR ASSEMBLY (a) Turn the ignition switch on, and measure the voltage between steering sensor connector terminals 1 and 2. Standard voltage: 3.5 — 4.2 volts (b) Measure the voltage between steering sensor connector terminals 3, 4 and 2 wheel slowly turning the steering wheel. Standard voltage: 5V — OV — 5V — OV If not as shown above, either the circuit between the computer and steering sensor is shorted or the steering sensor is faulty. 3. REMOVE STEERING SENSOR AND DISC (See page SR-7) 4. INSPECT STEERING SENSOR AND DISC (a) Check that there is no foreign matter in the groove of the sensor. If necessary, clean out the groove with a soft cloth. (b) Check that the sensor disc is not bent and that no dirt or foreign matter are adhering. 5. INSTALL STEERING SENSOR AND DISC (See page SR-12) Mode Select Switch INSPECT SWITCH CONTINUITY (a) Remove the mode select switch from the center console box. (b) Disconnect the mode select switch connector. (c) Check that there is continuity between terminals 1 and 2 when mode select switch is "Sport" position. (d) Check that there is no continuity between terminals 1 and 2 when mode select switch is "Normal" position.
