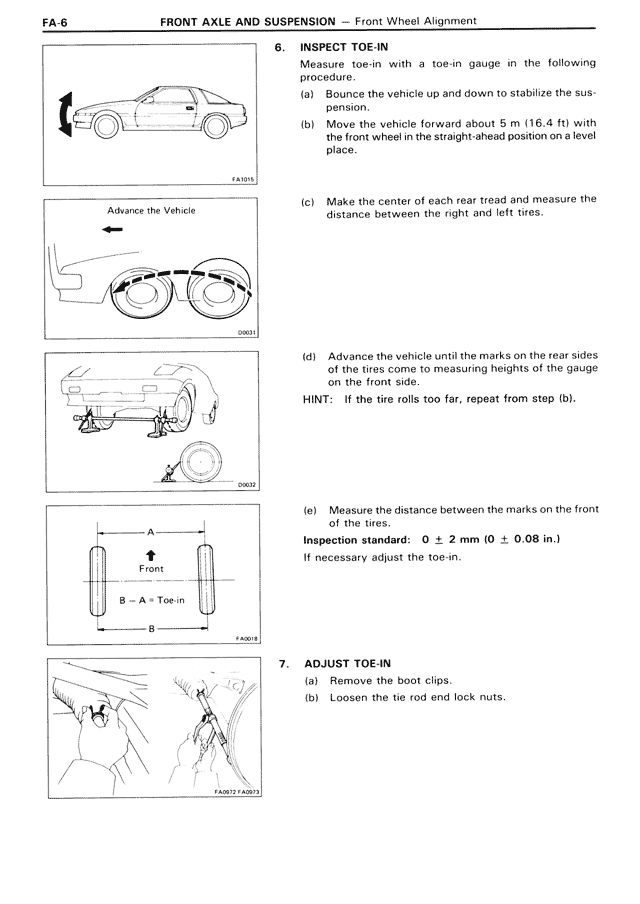

6. INSPECT TOE-IN
Measure toe-in with a toe-in gauge in the following procedure.
(a) Bounce the vehicle up and down to stabilize the suspension.
(b) Move the vehicle forward about 5 m (16.4 ft) with the front wheel in the straight-ahead position on a level place.
(c) Make the center of each rear tread and measure the distance between the right and left tires.
(d) Advance the vehicle until the marks on the rear sides of the tires come to measuring heights of the gauge on the front side.
HINT: If the tire rolls too far, repeat from step (b).
(e) Measure the distance between the marks on the front of the tires.
Inspection standard: 0 ± 2 mm (0 ± 0.08 in.)
If necessary adjust the toe-in.
B — A = Toe-in
7. ADJUST TOE-IN
(a) Remove the boot clips.
(b) Loosen the tie rod end lock nuts.
