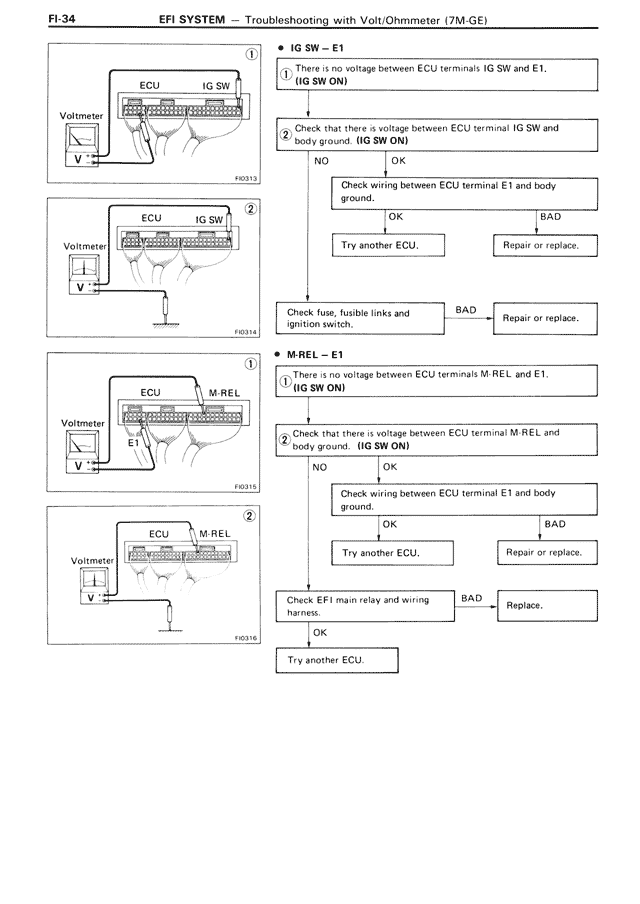

FI-34 EFI SYSTEM — Troubleshooting with Volt/Ohmmeter (7M-GE) • IG SW – E1 1. There is no voltage between ECU terminals IG SW and E1. (IG SW ON) 2. Check that there is voltage between ECU terminal IG SW and body ground. (IG SW ON) NO OK Check wiring between ECU terminal E1 and body ground. OK BAD Try another ECU. Repair or replace. BAD Check fuse, fusible links and Repair or replace. ignition switch. • M-REL – E1 1. There is no voltage between ECU terminals M-REL and E1. (IG SW ON) 2. Check that there is voltage between ECU terminal M-REL and body ground. (IG SW ON) NO OK Check wiring between ECU terminal E1 and body ground. OK BAD Try another ECU. Repair or replace. BAD Check EFI main relay and wiring Replace. harness. OK Try another ECU.
