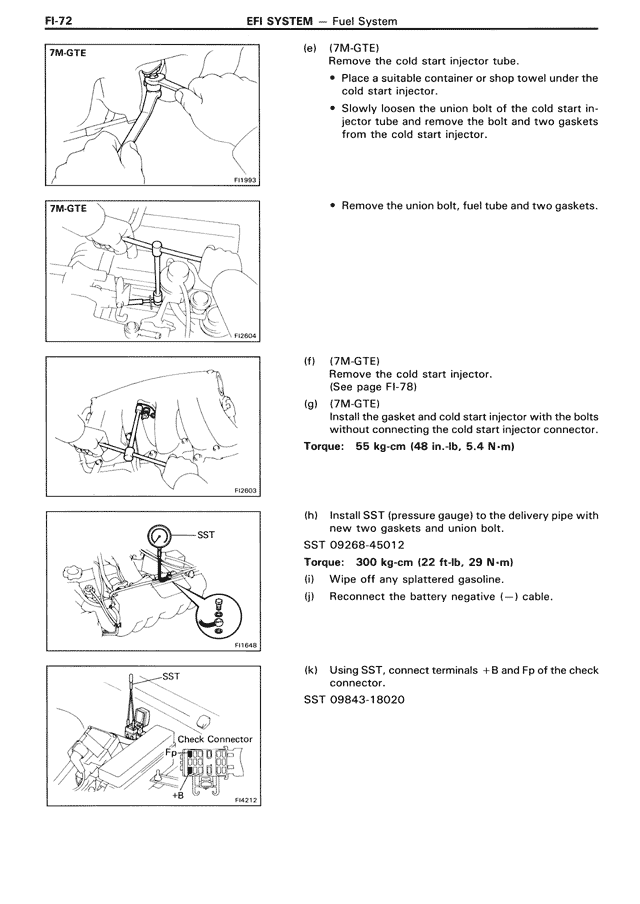

FI-72 EFI SYSTEM — Fuel System 7M-GTE (e) (7M-GTE) Remove the cold start injector tube. • Place a suitable container or shop towel under the cold start injector. • Slowly loosen the union bolt of the cold start injector tube and remove the bolt and two gaskets from the cold start injector. 7M-GTE • Remove the union bolt, fuel tube and two gaskets. (f) (7M-GTE) Remove the cold start injector. (See page FI-78) (g) (7M-GTE) Install the gasket and cold start injector with the bolts without connecting the cold start injector connector. Torque: 55 kg·cm (48 in. lb, 5.4 N·m) (h) Install SST (pressure gauge) to the delivery pipe with new two gaskets and union bolt. SST 09268-45012 Torque: 300 kg·cm (22 ft·lb, 29 N·m) (i) Wipe off any splattered gasoline. (j) Reconnect the battery negative (—) cable. SST (k) Using SST, connect terminals +B and Fp of the check connector. SST 09843-18020 SST Check Connector +B
